  • Model #:PR-06PRO
  • Name:Net Probe PRO
more big imgs
  • http://pansco.com/cache/20120719155606_cut.252.206.jpg
  • http://pansco.com/cache/20130619114908_cut.252.206.jpg
  • http://pansco.com/cache/20120719155754_cut.252.206.jpg

With Blink Hub / Tone generator mode, Net link indicator, Flash LED light, Signal strength and Low battery indicators, Adjustable volume, Replaceable tip, RJ45 jack, Earphone jack and Lanyard.

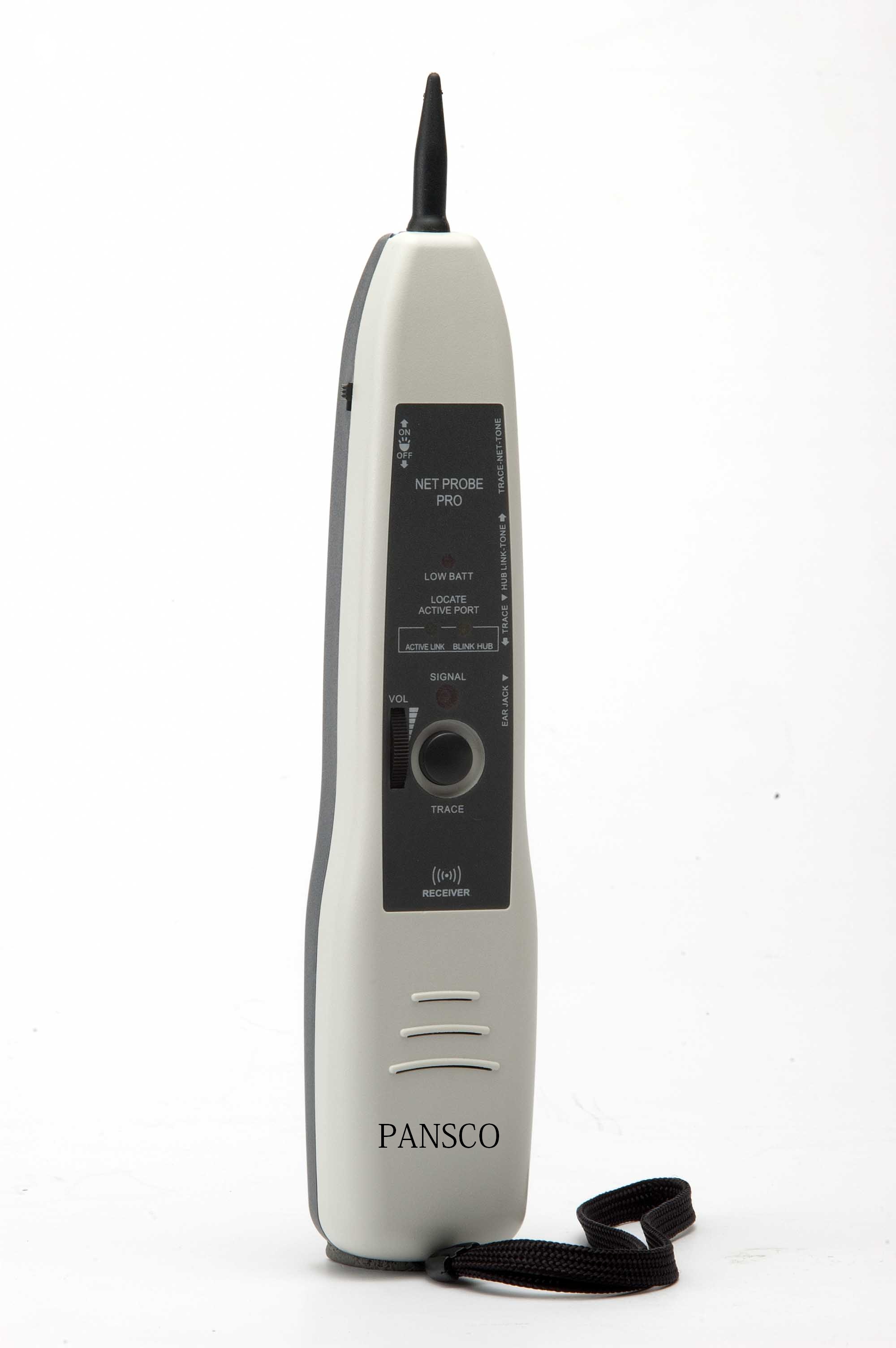

The one-in-all Net Probe Pro combines Blink Hub, Net link, Tone generator, Flash LED light and Trace tone functions.  For identify active Network connection and confirm the end of a cable connect to a Network device or an open link.  When for use with tone generator to identify, locate and trace wires, cables within a bundle, outlet or patch panel.



Today’s network environment cable typically are terminated end in HUB or Switch ports. The PR-06 Pro incorporates a blink HUB, a toner and a Net link status functions for identifying the termination point of cable on the active network device and quickly confirm the status of an active network.

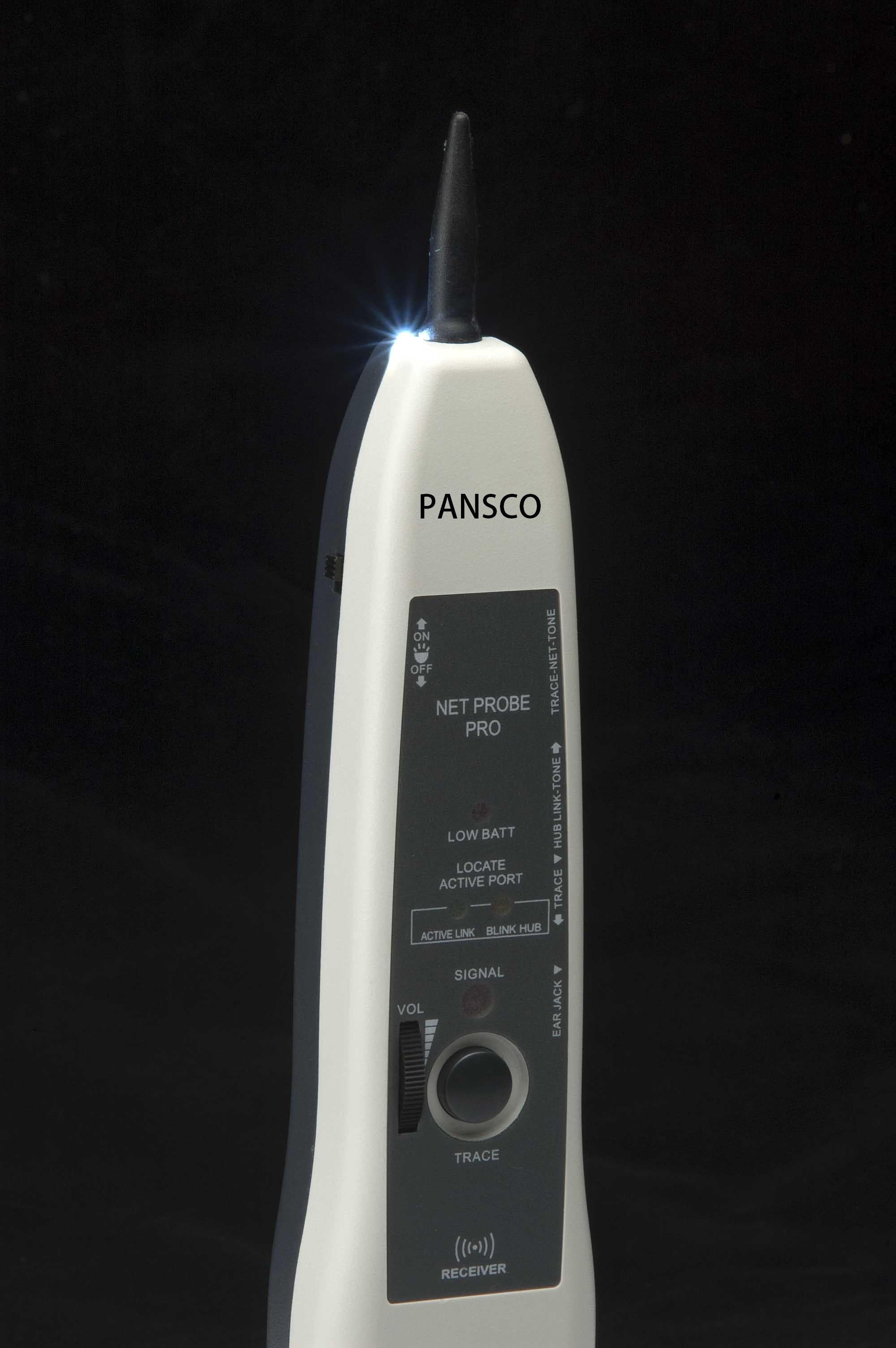

Flash LED light can help to trace cable in dark field.  The PR-06 Pro is compatible with most tone generators on the market.  To identify and trace wires and cables within a bundle and a patch panel.  It also includes RJ45 jack, signal strength indicator, adjustable volume control, headset jack, battery low indicator, lanyard and replaceable tip.  An ideal tool for installation, service and repair.



The big advantage:

By using two units enable it to rapidly trace, locate and identify cables on both sides simultaneously, and no need to running back and forth, makes tracing quick and more efficient.  This saves time and cost.



Comparison chart for All Probe items



Features

PR-06S

PR-06P

PR-06C

PR-06D

PR-06Pro

PR-06Plus

PR-06F

Transmit Tone









V

V



Receive Tone

V

V

V

V

V

V

V

Continuity Test











V



Polarity Test for Line 1

V

V

V

V



V



Over Current Test





V

V







Monitor Dial Tone







V







Hub Blink









V

V



Active Link Indicator









V

V



Flash Light LED









V

V

V

LED Display for Each Pin & Shield Testing













V

Test Pins



V

V

V



V



Adjust Volume Control

V

V

V

V

V

V

V

Visual Signal Strength Indicator



V

V

V

V

V

V

Headset Jack

V

V

V

V

V

V

V

RJ45 Jack Interface

V

V

V

V

V

V

V

Battery Low Indicator

V

V

V

V

V

V

V

Replaceable Tip

V

V

V

V

V

V

V

One-Button Operation

V

V

V

V

V

V

V











  1. Blink HUB / Tone mode to locate cable on active network, when terminated at HUB / Switch.
  2. Effectively traces and locates wiring and cable within bundle or patch panel.
  3. Tone mode for use with another probe to trace and locate cable.
  4. Net link LED shows you and confirms the end of a cable connect to an active network device.
  5. Flash LED light can help you to find the target in dark field.
  6. Comes with adjustable volume, earphone jack, RJ45 jack, lanyard and replaceable tip.
  7. With signal strength and low battery indicator.
  8. Headset jack accept a 2.5mm earphone to listen the tone in noisy environment.



Gain

30dB

Tip Resistance

300ohm (plastic tip)

Tone Frequency

Alternating  500 – 780 HZ

Traffic Test

Active HUB/Switch detection

Battery

9VDC battery

Interface

RJ45 Jack, 2.5mm earphone jack, replaceable tip, trace button and volume control.

Supported Tests

Toning, Tracing, blink Hub port light, active Ethernet port detection and identification, LED flashlight.

Operating Conditions

0℃ to 50℃ / 32℉ to 122℉.

Size

(21X3.8X2.6)cm  (8.2X1.5X1)inch

Weight

130g with battery

Certification

CE
