  • Model #:PA-40
  • Name:Network Cable Tester
more big imgs
  • http://pansco.com/cache/20111201185923_cut.252.206.jpg

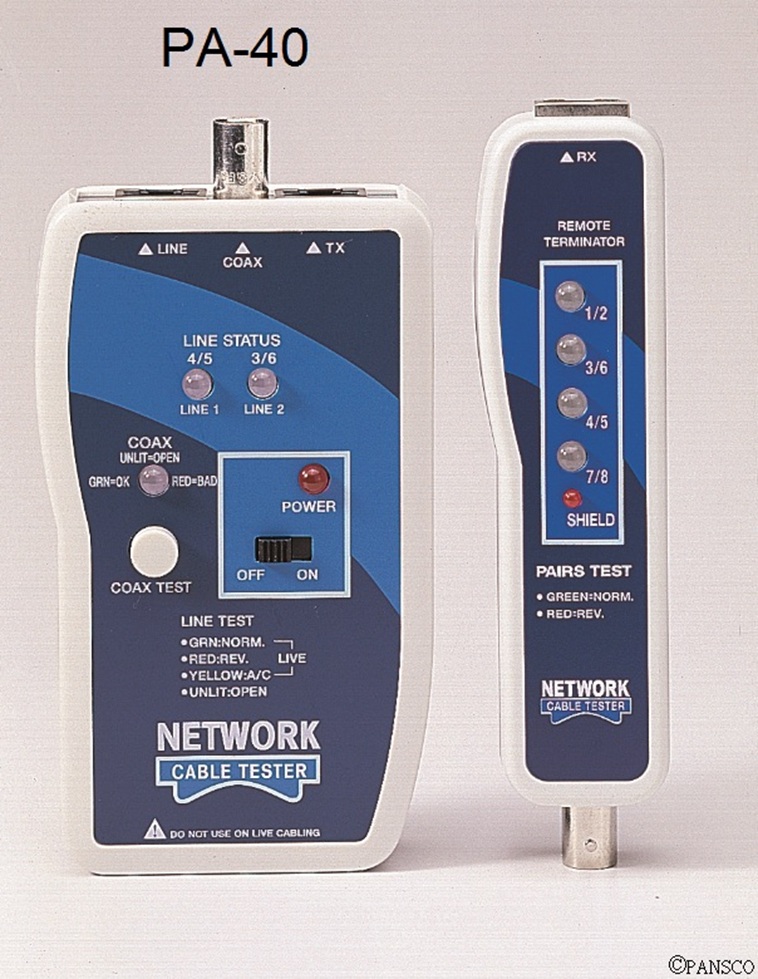

Network Cable Tester



The PA-40 is designed to check both shielded and unshielded twisted pair (STP/UTP) and coaxial BNC-type network cables. With the push of a button, it tests all wires for continuity, miswiring, and polarization. Dual-colored LEDs let you identify correct and reversed pairs; using the included remote unit, cables may be tested before installation or after installation. Features tip/ring polarity test. Uses 1 9V battery.



  •  Tests both shielded/unshielded twisted pair and coaxial BNC-type network cables.
  •  Scans all wires for continuity, miswiring, and polarization.
  •  Dual-colored LEDs identify correct and reversed pairs.
  •  Remote unit lets you test installed as well as uninstalled cables.
  •  Line 1 and line 2 polarity testing; tip/ring testing.
  •  Line voltage tester helps prevent damage to the tester from live circuits.
  1. Dimensions main:  4.9 X 2.7 X 1.0〞 (125 X 68 X 26 )mm                                   Remote:  5.1 X 1.3 X 1.0〞 (130 X 32 X 26 )mm
  1. Operating temp.:   0°C ~ 45°C
  2. Weight      :  0.35 lb.  0.16㎏
  3. Power Req.  :  One DC 9V battery
