All-Check Plus

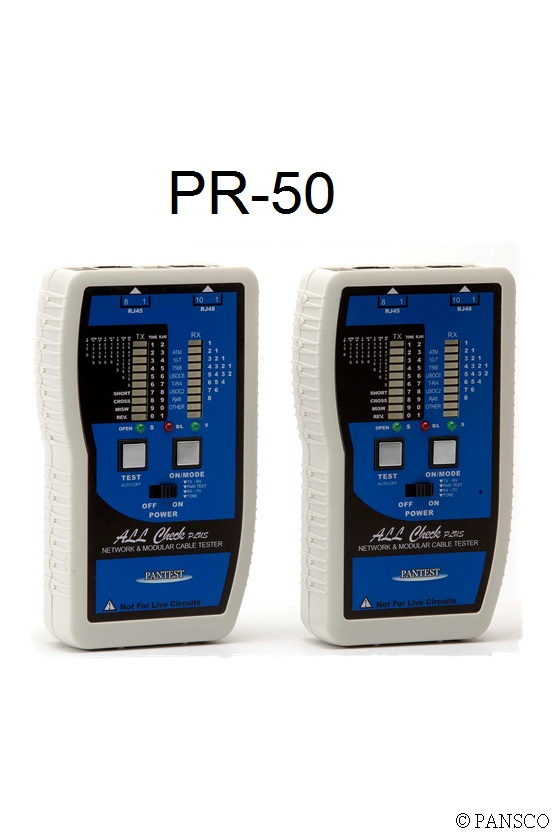

The All-Check Plus is an all-purpose cable testing and tracing tool. Its twin units are plugged in at both ends of the cable. Pin-by-pin test results, cable type, and twist pair faults are displayed on both units. Both units can transmit or receive test signals. A built-in tone generator, when combined with any standard tone tracer, lets you send a signal on any pin or all pins, to quickly isolate and trace a cable to its destination. Automatic power off, battery low indicator.
-
2 identical test units let you plug in each end of test cable, test installed wiring.
-
Tests RJ-45, RJ-48, RJ-12, and coaxial cable (with included coaxial adaptor).
-
In pair test mode, tester automatically analyzes pair faults.
-
Pin-by-pin results (up to 10 pins) are displayed on both units.
-
Built-in tone generator (tone tracer not included).
-
Detects cable type, miswiring, shorts, opens, and reversed pairs.
-
Detects cable type automatically.
|
Power
|
9V Alkaline battery
|
|
Size
|
4.57〞X2.67〞X1.13〞/116mmX68mmX28mm
|
|
Weight
|
315g with battery
Shipping weight – 380g without battery
|
|
Operating Temp.
|
0℃ - 45℃ (32℉ - 113℉)
|
|
Material
|
ABS
|
|
Built-in interface
|
RJ45 Jack – accepts both RJ45 & RJ11 plugs and RJ48 jack
|
|
Display
|
3ψLED, 10 segments Bar-Graph and beeper sounds
|
|
Tone Freq.
|
600 HZ
|
|
Mode:
|
TX – RX test. Pair test. RX – TX test and tone.
|
|
Test
|
Checks the pin/pair configuration, indicate cable type and fault analysis.
|
|
Cable types supported
|
UTP, STP 10 Base-T, 100/1000 Base-TX, Token Ring (RJ45) TP-PMD, T568 A / B, BNC / COAX and USOC 8,6,4,2 cables.
|
|
Distance maximum length
|
2,000ft. / 610m
|
