  • Model #:PK-170 INNOTESTER PRO
  • Name:Cable ID & PoE Tester
more big imgs
  • http://pansco.com/cache/20170901120339_cut.252.206.jpg
  • http://pansco.com/cache/201709011203390_cut.252.206.jpg
  • http://pansco.com/img.php?url=upload/2017/09/201709011203391.jpg&w=252&h=206&cut=4
  • PK-170 :     INNOTESTER PRO with #1 smart test&ID remote

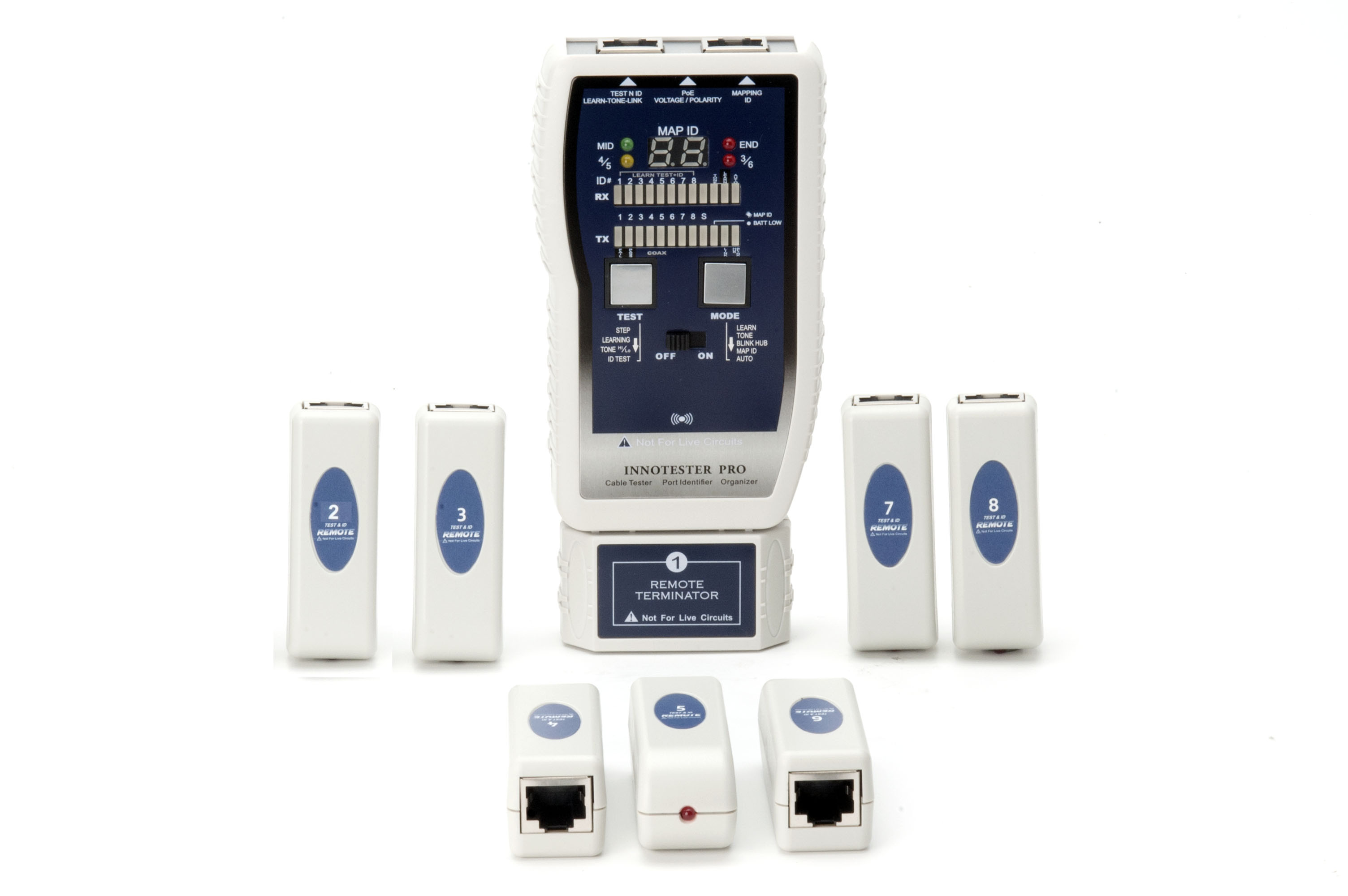

  • PK-170R:    INNOTESTER PRO with #1-8 Smart Test N ID remotes

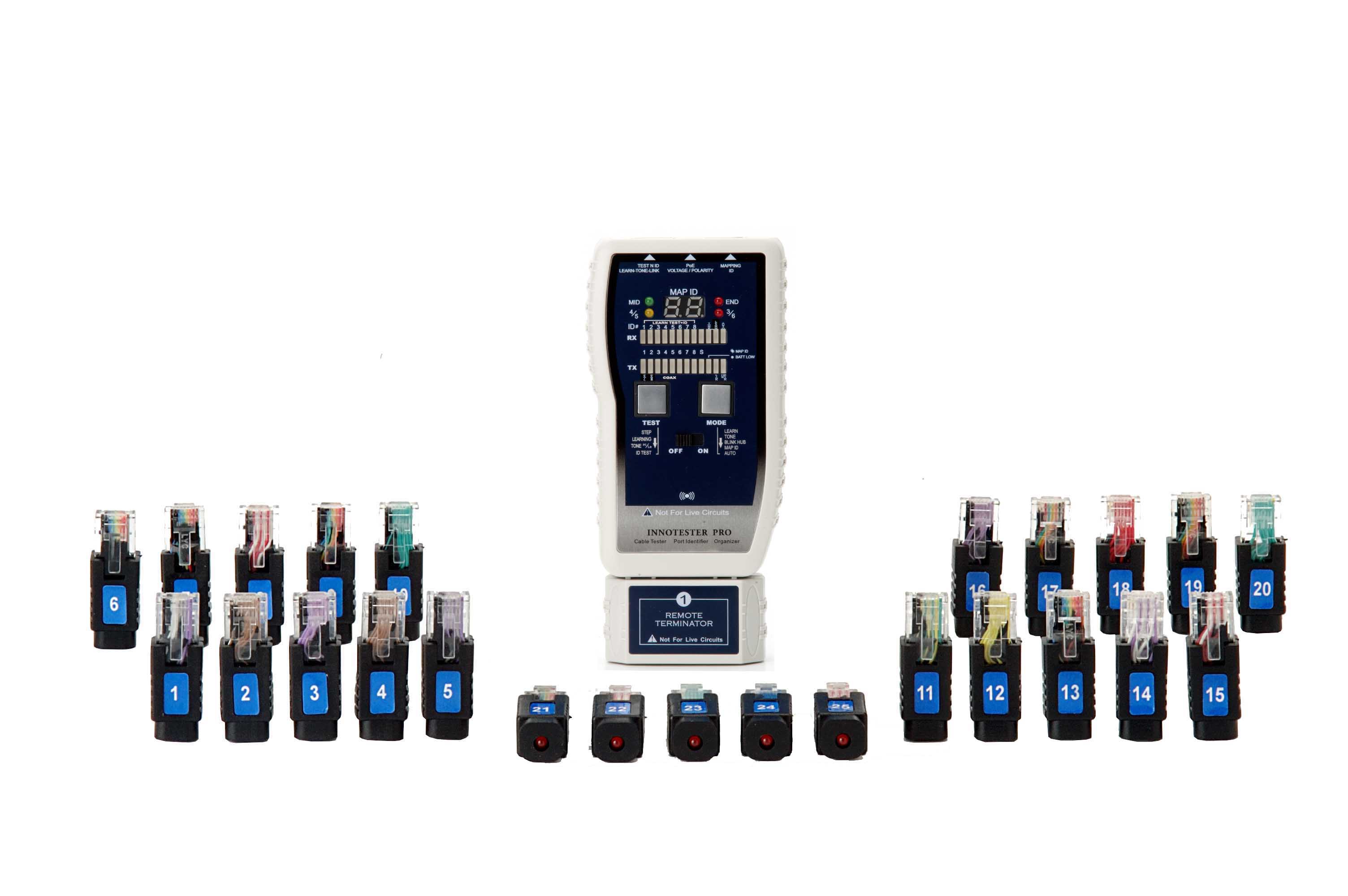

  • PK-170KIT: INNOTESTER PRO with #1-8 Smart Test N ID remotes, Net Probe (PR-06P) and #1-25 ID mapping only remote.
  • PK-170-ID:   #1-25 ID mapping only remotes

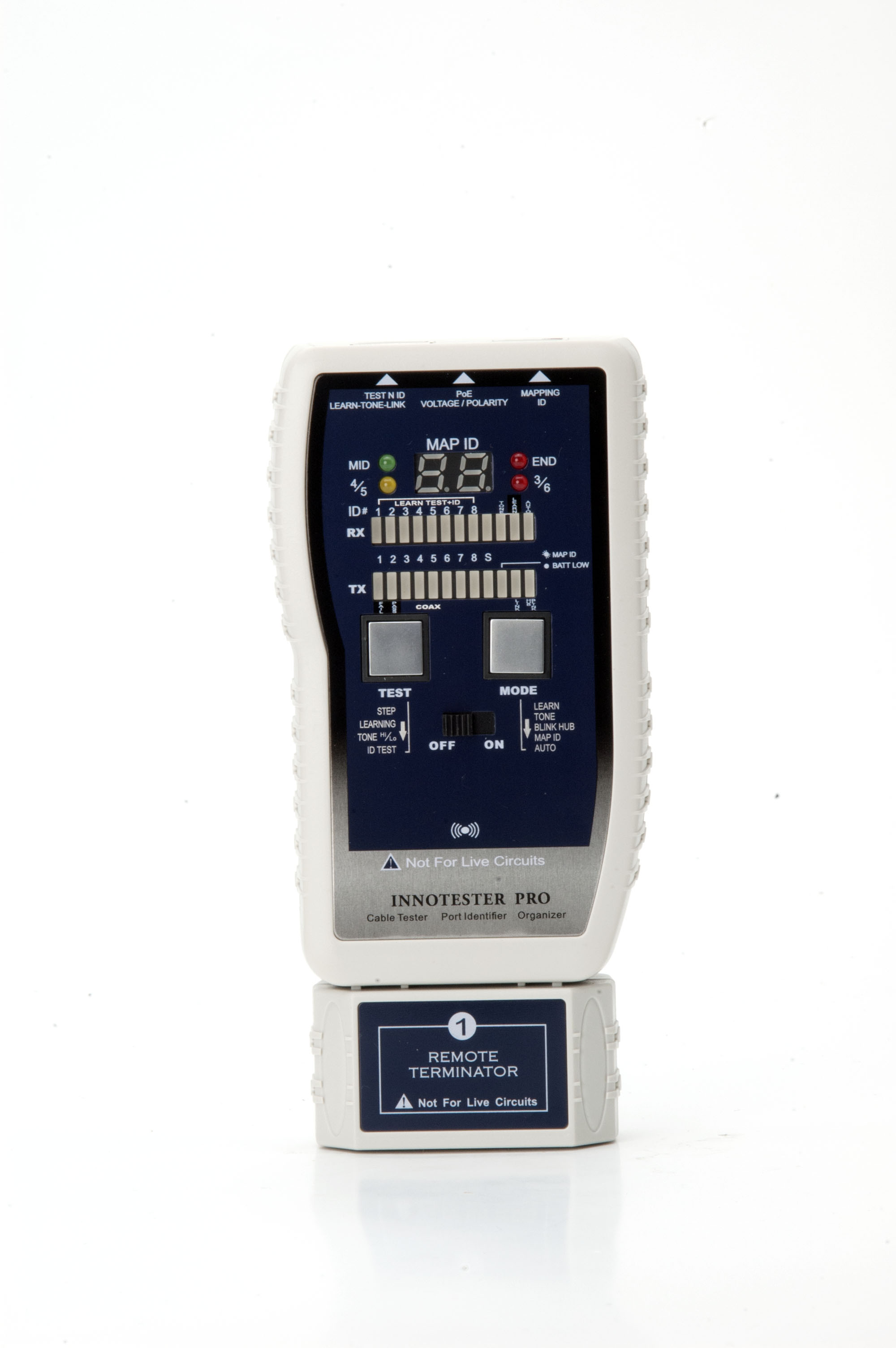

INNOTESTER PRO combines the functions of a smart cable tester, network tester, port identifier and organizer with the capability to identify up to 100 cables run at a time, and 8 Test + ID remotes allows one person to test 8 cables run up to 600 meters. Tone mode, transmits 2 powerful tones for tracing inactive and active network cables on a Switch or HUB. More effectively tracing at patch panel, termination blocks or hidden within bundles.



It also features a unique LEARN mode enabling rapid testing quantity of standard or custom cables via PASS/FAIL, ID with a beep sound in one second. Displays test results on the main unit for easy reading. AUTO/STEP scan modes for checking cable details pinouts. TONE GENERATION for use with probe for cable tracing. HUB BLINK mode detects and response and active network outlet and identify location on a HUB/Switch.



Additional features include detecting your RJ45 outlet for PoE(Power over Ethernet) existence and identify type of PSE either Endspan or Midspan in a second as well as detects the presence of phone line of voltage and checking polarity. This warn to prevent potentially damage the tester unit.



PK-170 gets the job done faster and easier for saving time and cost.





  • All-in-one tool for testing, verifying and organizing the cable system up to 600m.
  • Unique Learn mode for testing quantity cables and gives accurate results instantly.
  • Verifies connectivity while pin to pin testing for opens, shorts, reversal and miswire faults.
  • Features both AUTO/STEP scan modes for checking cable details pin configuration.
  • Support up to 8 testing and ID mapping remotes for VDV cables at the same time.
  • One technician can identify up to 100 remote cables location at a time.
  • HUB blink for locating network port by flashing the port light on HUB/Switch.
  • Tone mode produces 2 selectable powerful tones for loacting inactive and active network cables on a Switch or HUB.
  • Detects presence of PoE and type of PoE (Endspan, Midspan or 4 pairs) per IEEE 802.3 af/at.
  • Detects presence of phone line of voltage and checking polarity with beep sound.



Test Interface

Main unit/ Remote Unit:

Left- RJ45 jack for Test and ID. Learn, Tone and Link modes.

Middle- RJ45 jack for PoE and Line voltage detection.

Right- ID mapping only.

Main unit display

Pin test: two rows light bar/ TX, RX and modes

ID: 2x7 segment LED (2 digit display from 0 to 99)

PoE: Endspan-Red, Midspan-Green

Line voltage/polarity: dual color LED x 2

Test Mode

AUTO/STEP scan, Learn, Tone, HUB blink and ID mapping

Tone Frequency

600HZ <-> 1KHZ alternating frequencies at two selectable tones

Voltage Warning

Voltage and PoE LEDs lit with beep sound

Cable Tested

Standard and custom VDV cable configuration

Max length for wire map

Up to 600 meters (2,000 ft)

Test Functions

Cable test, Network test, Port identify, and Patch panel/wiring closet and outlet/office cable identifier

Temperature Operating storage Humidity

0℃ ~ 50℃ (32℉~122℉)

-20℃ ~ 60℃ (-4℉ ~ 140℉)

10℃ ~ 90℃ non-condensing

Dimensions

Main unit: 2.8’x4.8’x1.1’

Remote Unite: 2.3’x1.2’x1.1’

Combines: 2.8’x5.9’x1.1’

Weight (approx.)

Combined 165g without battery

Power

1 x 9VDC Alkaline battery

Certification

CE/FCC Approved
