  • Model #:PR-67
  • Name:Net Toner & Probe Kit II
more big imgs
  • http://pansco.com/cache/20160218145016_cut.252.206.jpg

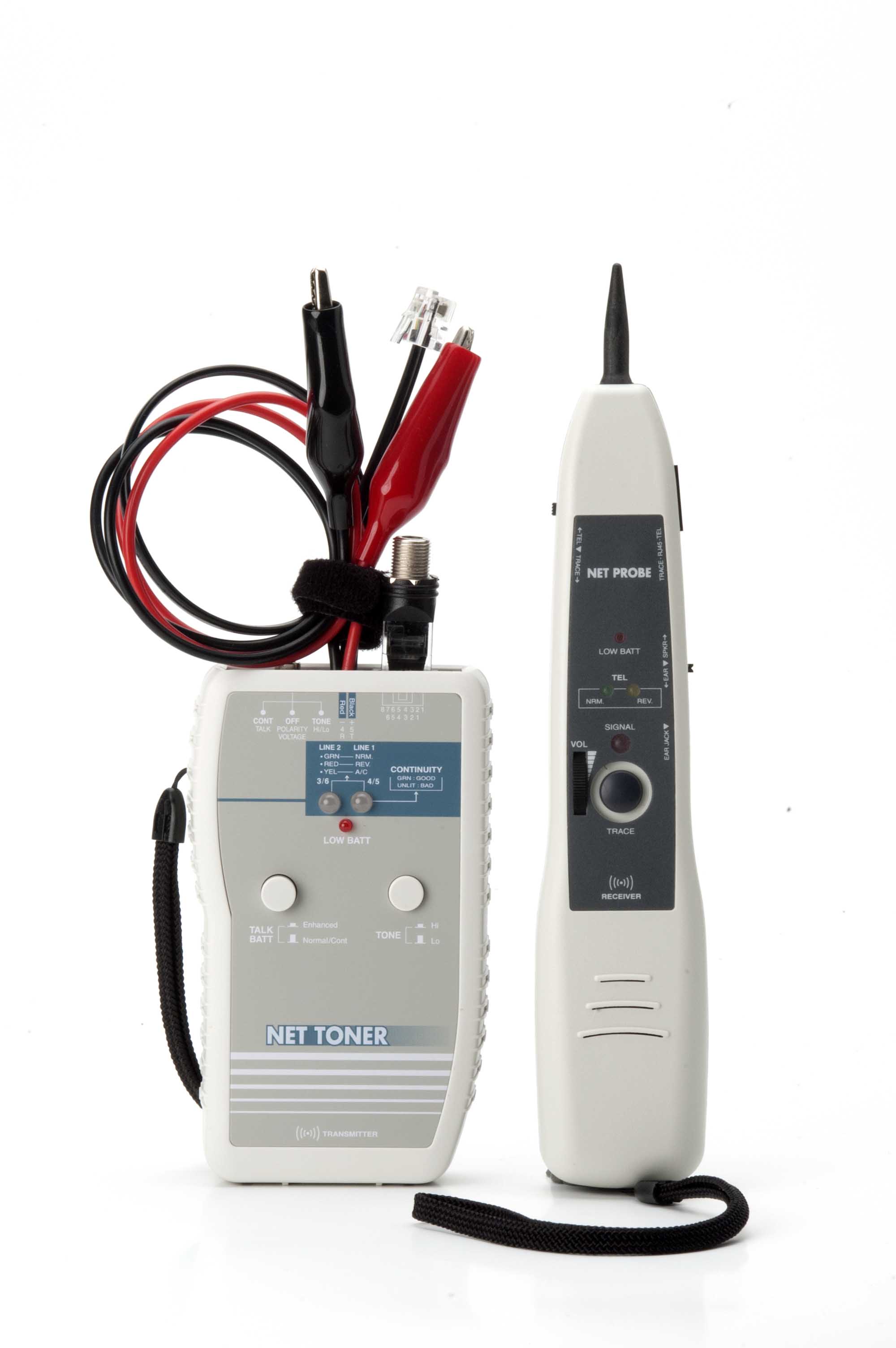

Net Toner & Probe Kit II





Easily trace & locate cables on active networks and live phone lines.

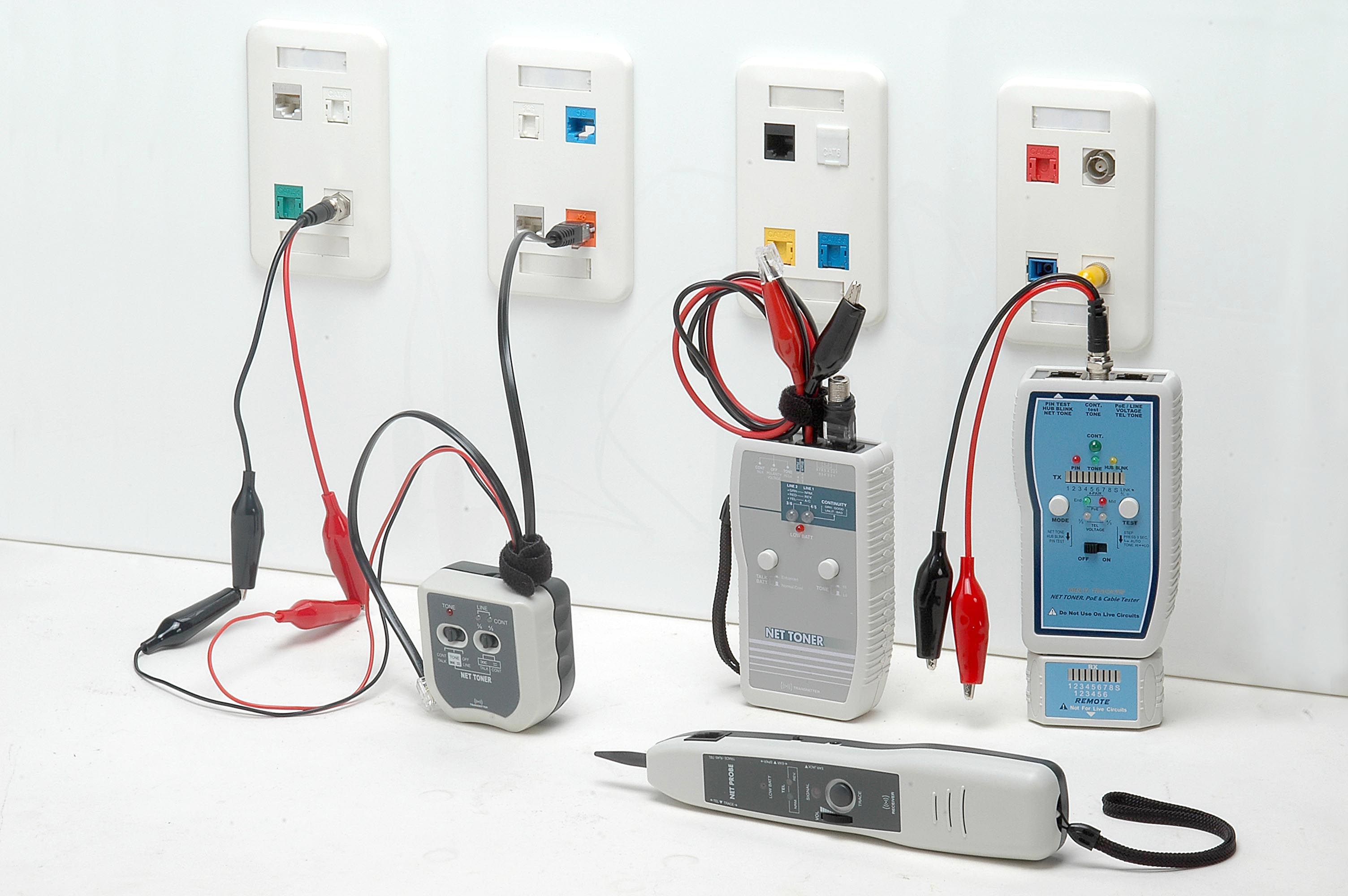

Built-in RJ45 jack and RJ11 plug cable make it easy to trace LAN, telephone, coax, security/alarm and speaker cabling systems on any work environment even on active networks.





The PR-67 has the unique features of enhancing output tones specifically for tracing and identifying active network cables on HUB/Switch and live telephone line system.



It provides 2 selectable powerful tones allows Datacom, Telecom technicians can quickly locate the right cable during installation & troubleshooting. It offers very precise tracing capabilities on tracing LAN, phone, security/alarm and speaker wiring. Other features included,



  1. Tests wire/cable continuity.

  2. Determine phone Line 1(4/5) and Line 2(3/6) voltage and polarity.

  3. Supply talk battery power to allow communication over inactive test sets.



In continuity mode, when a short circuit is detected an audible sound will be heard. With low-battery indicator.



  1. Built-in RJ45 jack for tracing active and inactive LAN cables. Use with included RJ45 to F adaptor allow user to trace coax, security/alarm cables.

  2. Uses the RJ11 plug cable to trace live phone line, verify Line 1 and Line 2 voltage & polarity.

  3. Alligator clips for testing wire continuity, for toning on non-terminated cable, punch down blocks and for connection to supply talk battery power.



The Net Probe comes with adjustable volume control and Ring/Tip polarity test indicators, an earphone jack for noisy environments, low battery indicator, easy tip replacement, and lanyards attachment point for hand-free operation.



The Net Probe is also equipped with a visual signal indicator and a flashlight help to find the target in dark field (PR-06PL only).  When used in conjunction with the toner, the Net Probe allows you to trace and troubleshoot Telecom/Datacom, Security/Alarm, CATV and Audio cable systems.  This Kit is a must-have tool for installation, service and repair.

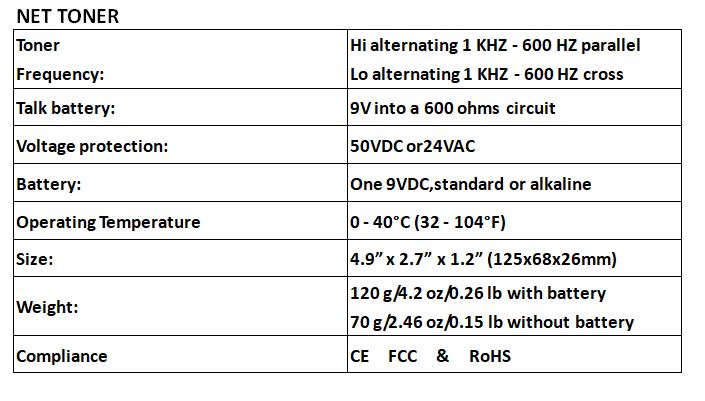

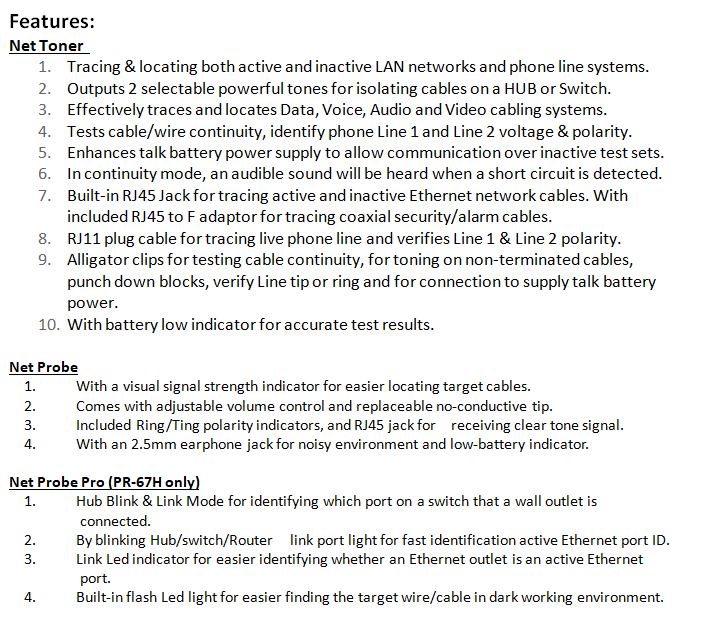

Net Toner

  1. Tracing & locating both active and inactive LAN networks and phone line systems.
  2. Outputs 2 selectable powerful tones for isolating cables on a HUB or Switch.
  3. Makes it easy to locate cables in the equipment closet during installation & troubleshooting.
  4. Tests cable/wire continuity, identify phone Line 1 and Line 2 voltage & polarity.
  5. Enhances talk battery power supply to allow communication over inactive test sets.
  6. In continuity mode, an audible sound will be heard when a short circuit is detected.
  7. Built-in RJ45 Jack for tracing active and inactive LAN cables. With included RJ45 to F adaptor for tracing coax security/alarm cables.
  8. RJ11 plug cable for tracing live phone line and verifies Line 1 & Line 2 polarity.
  9. Alligator clips for testing cable continuity, for toning on non-terminated cables, punch down blocks, verify Line tip or ring and for connection to supply talk battery power.
  10. With battery low indicator.

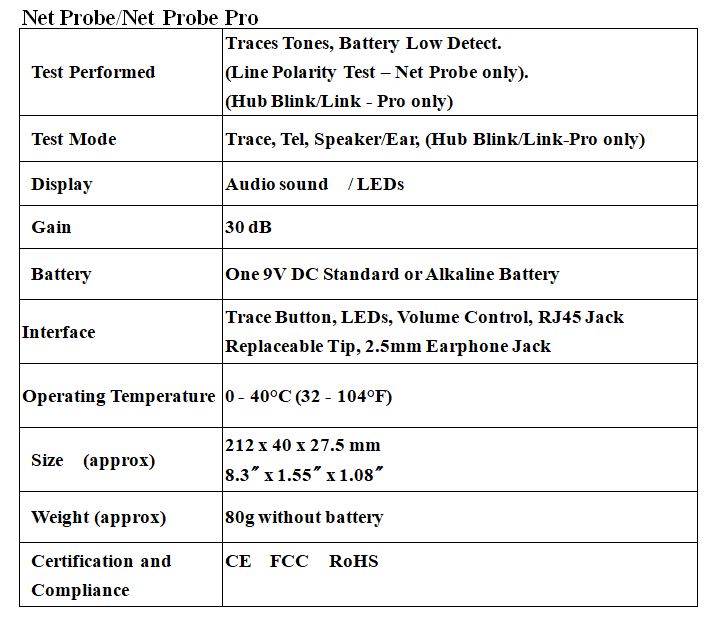

Net Probe

  1. Comes with adjustable table volume control.
  2. Includes Ring/Tip polarity indicators and RJ45 jack.
  3. An earphone jack for noisy environments.
  4. With low-battery indicator and easy tip replacement.
  5. Lanyards attachment point for hand-free operation.
  6. Flashlight (PR-06PL only) can help user to find the target in dark field.
