  • Model #:PE-100
  • Name:PoE Tester
more big imgs
  • http://pansco.com/cache/20180529111424_cut.252.206.JPG
  • http://pansco.com/cache/201805291114240_cut.252.206.JPG

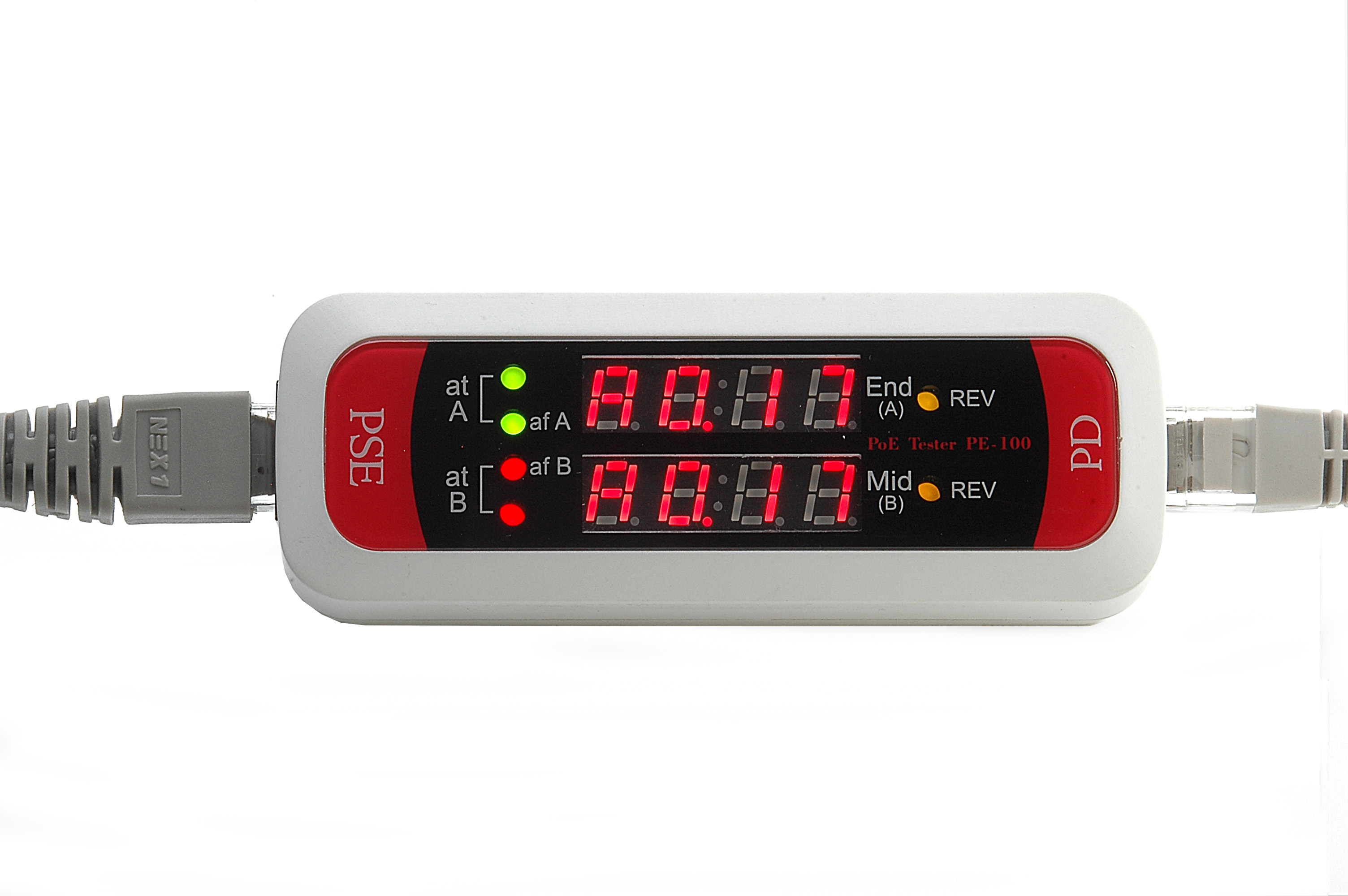

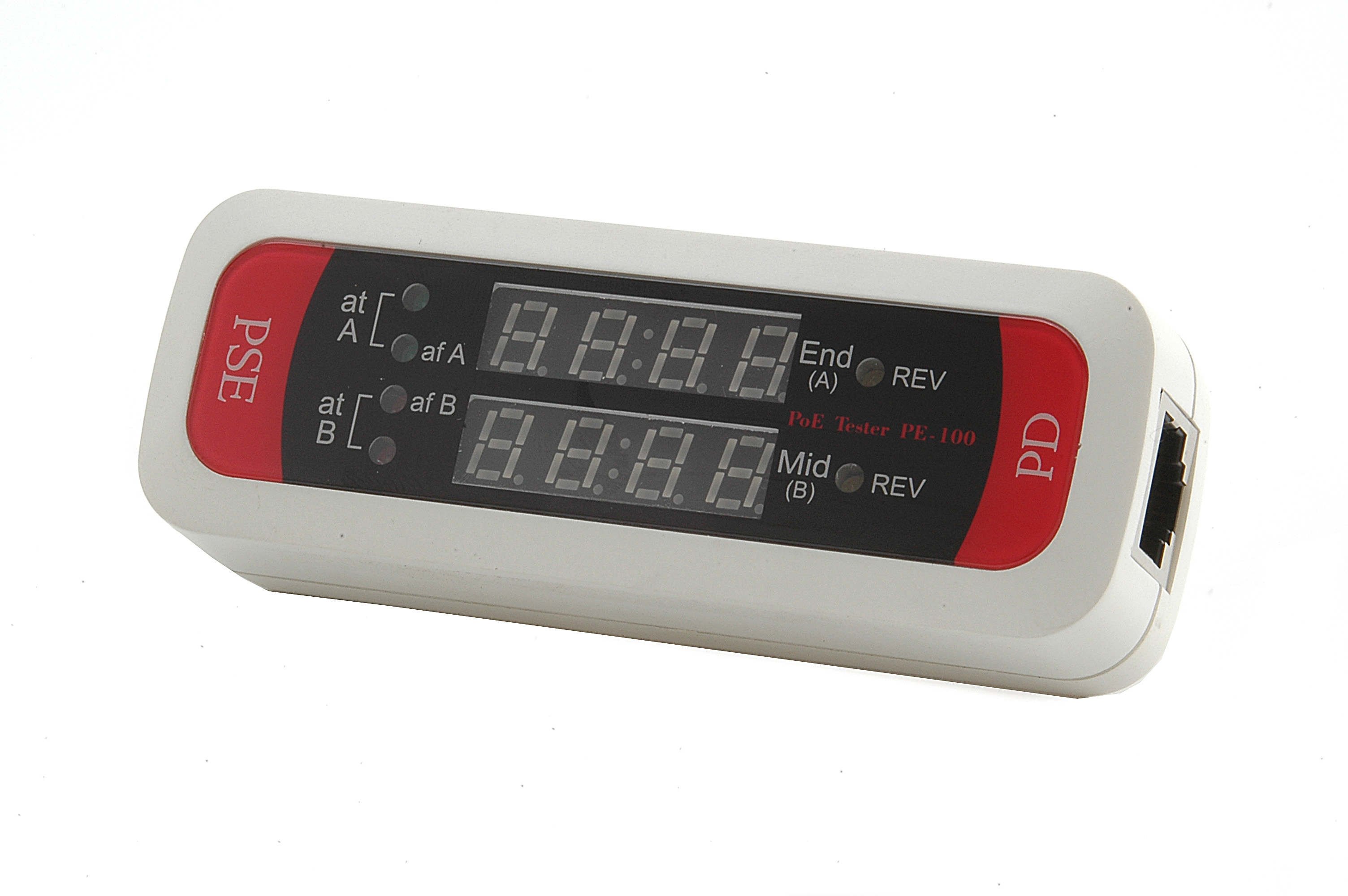

PoE Tester/ Power Monitor



The PoE Tester/Power Monitor is designed for testing standard PoE and measuring power of PoE systems, by performing both PSE (Power Source Equipment) detecting and PSE/PD (Powered device) inline testing. Compliant with IEEE802.3 af, 802.3at standard and 802.3bt ultra 4-pair up to 60W-100W. PSE detecting display PoE type (af or at), power source (Endspan or Midspan) and perform a load test for voltage drop with REV LED indicates a reversed power. Inline PSE/PD testing-measure and display in rotation between voltage (Volts), current(Amps) and power(Watts) via dual 4 digit 7 segment LEDs which provides voltage available, current flowing and how much power an PD actually need ensure sufficient power for PD to make the PoE is sustainable.



PE-100T built-in Gigabit PoE+ Ethernet transformer with up to 750 mA current each pair to isolate data passes, and measure power without interruption of data. It’s compatible to 10/100 and Gigabit Ethernet module magnetic for dual port PoE+ application and works with managed and unmanaged Ethernet switches or injectors and both End and Mid PoE systems.



Voltage Rang: 30V to 60V.



Max Current:

2 Amps each mode total 4 Amps (PE-100)

1Amp each mode total 2 Amps (PE-100T)



The PoE tester/power monitor is a handy professional diagnostic tool, compact design for PoE system installers, integrators, IT network technicians, especially do larger PoE install for surveillance as well as PoE CCTV and ISP install technicians to diagnose troubleshoot PoE issues and speed up PoE system installation.



At a glance:

  1. Determines PoE standard if either 802.3 af or at, or ultra bt 4 pair 60W/100W
  2. Detects power source if either Endspan(A) or Midspan(B) or ultra 4-pair.
  3. Measure and display PSE voltage and polarity ensure PD have the proper power.
  4. Inline testing provides voltage (V) available, current (I) flowing and power (Watts)
  5. P=V X I. Values in Rotation.
  6. Confirms your PoE network system for just all the power you do need.
  7. Determines the value of power to ensure that a PD actually needs.
  8. Data compatibility-supports 10/100 and gigabit Ethernet data rates(PE-100T only)
  9. Speed up PoE system installation, diagnose and troubleshoot issues.
  10.    Plug and play for ease of use, with battery-free operation.







1.    Provides a simple way to test and set up PoE system and help to troubleshoot connection issues.

2.    Determines if switch or Ethernet outlet has PoE capability and displays power draw at PD connected.

3.    Display PoE type (af or at), power source (Endspan or Midspan) and voltage values and polarity at PSE connected without needed a load.

4.    Measure and confirm proper power delivery by the PSE and the draw of power a PD needed to ensure PoE is sustainable.

5.    measure power inline testing during active operation at up to gigabit speed.(PE-100T only)

6.    Dual 4-digit LEDs display in rotation between voltage, current and power and LEDs indicates PoE type and power sources and polarity.

7.    Monitor of PoE system to ensure a proper PSE, avoid exceeding the power for PDs.

8.    Voltage range – 30V to 60V.

9.    Max Current: 2 Amps each mode total 4 Amps (PE-100).

                      1 Amp each mode total 2 Amps (PE-100T).

10.   Plug and play for ease of use, with battery-free operation.



Connector Interface

2XRJ45 Jack, (PSE test port/PD test port)

Display



6 LEDs indicate af End/Mid, at End/Mid and End REV/Mid REV.

Dual 7-digit LEDs for both End and Mid modes.

Display in rotation between voltage, current and power

Standard Compliant

IEEE 802.3af (PoE), IEEE802.3at (PoE+) , 802.3bt (PoE++)

Voltage range

Max 30V to 60V for mode A and mode B

Measure current

PE-100 2Amps each mode, total 4Amps

PE-100T 1Amp each mode, total 2 Amps

Operating Temp

Storage Temp

 32℉ to 122℉(0℃ to 50℃)

-40℉ to 131℉(-20℃ to 55℃)

Operating Humidity

Max 90% non-condensing

Size

 99x36x26 mm / 3.9x1.4x1 inch

 80 g /2.82 oz

Certification and Compliance

CE, FCC, RoHS
