  • Model #:PE-200
  • Name:PoE Tester PRO
more big imgs
  • http://pansco.com/cache/20180529111159_cut.252.206.JPG
  • http://pansco.com/cache/201805291111590_cut.252.206.JPG
  • http://pansco.com/cache/201711201404571_cut.252.206.JPG

PoE Tester Pro

PoE Tester PRO with Transformer



The PoE Tester Pro is designed for speed testing and verifying standard active and passive PoE networks as well as measuring power level of a PoE system even with reversed polarity on IEEE 802.3 af (PoE), 802.3 at(PoE+) and 802.3bt(PoE++) type3 compliant standard PoE.



Voltage Range : 30V to 60V.



Max Current : 750 mA each pair, total, 1.5Amps.



By performing both one-site PSE voltage testing and In-line (PSE/PD) power level testing.

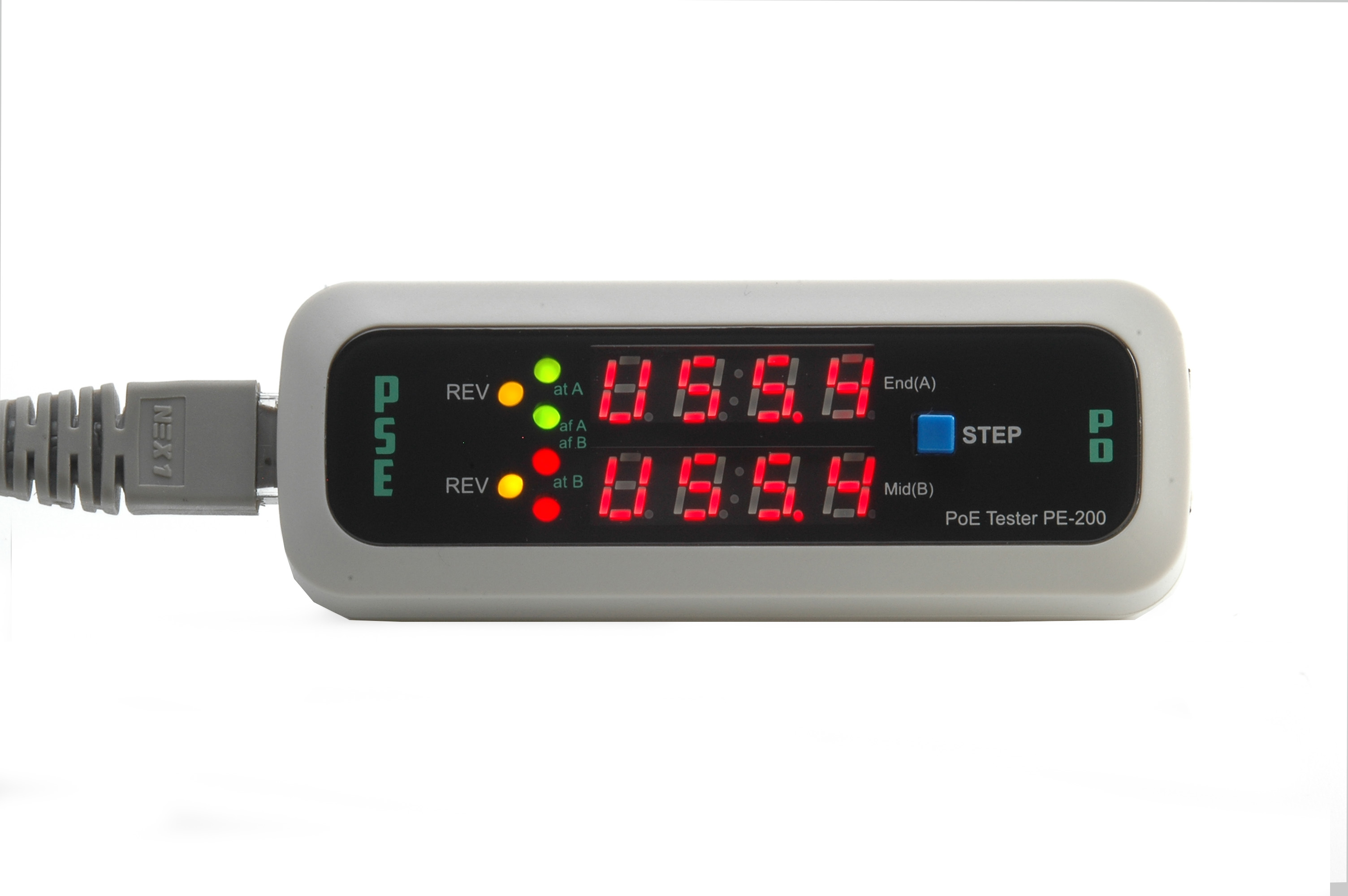

● PSE testing – Identifies the presence and proper voltage for PoE application as well as verifies the PSE is delivering voltage power compliant with alternative End (A) or Mid (B) or both and with REV LEDs indicate a reversed power in either IEEE 802.3 af or 802.3 at or 802.3 bt compliant standard.(Note: the tester displays 802.3 at instead of 802.3bt present.)

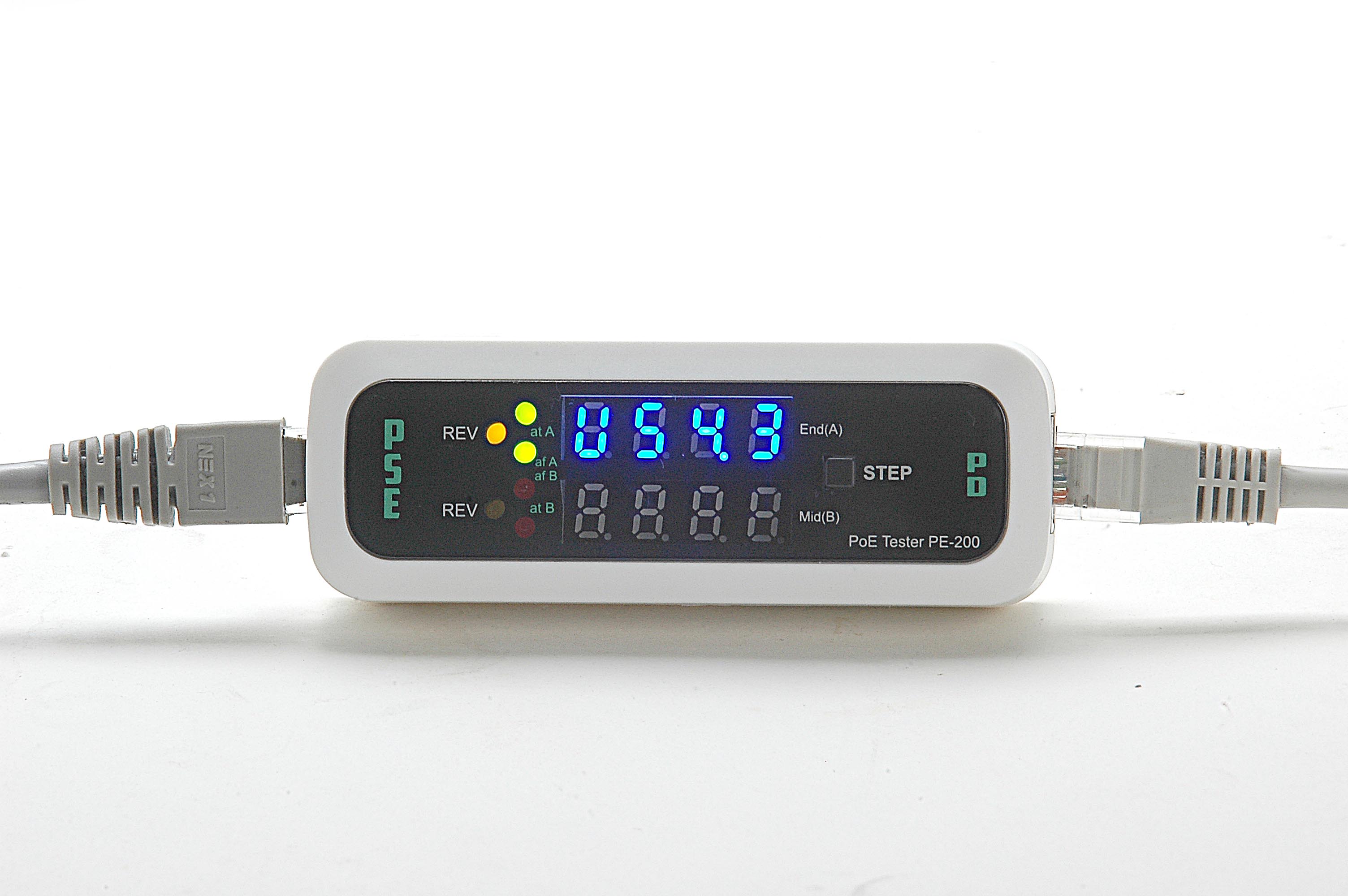

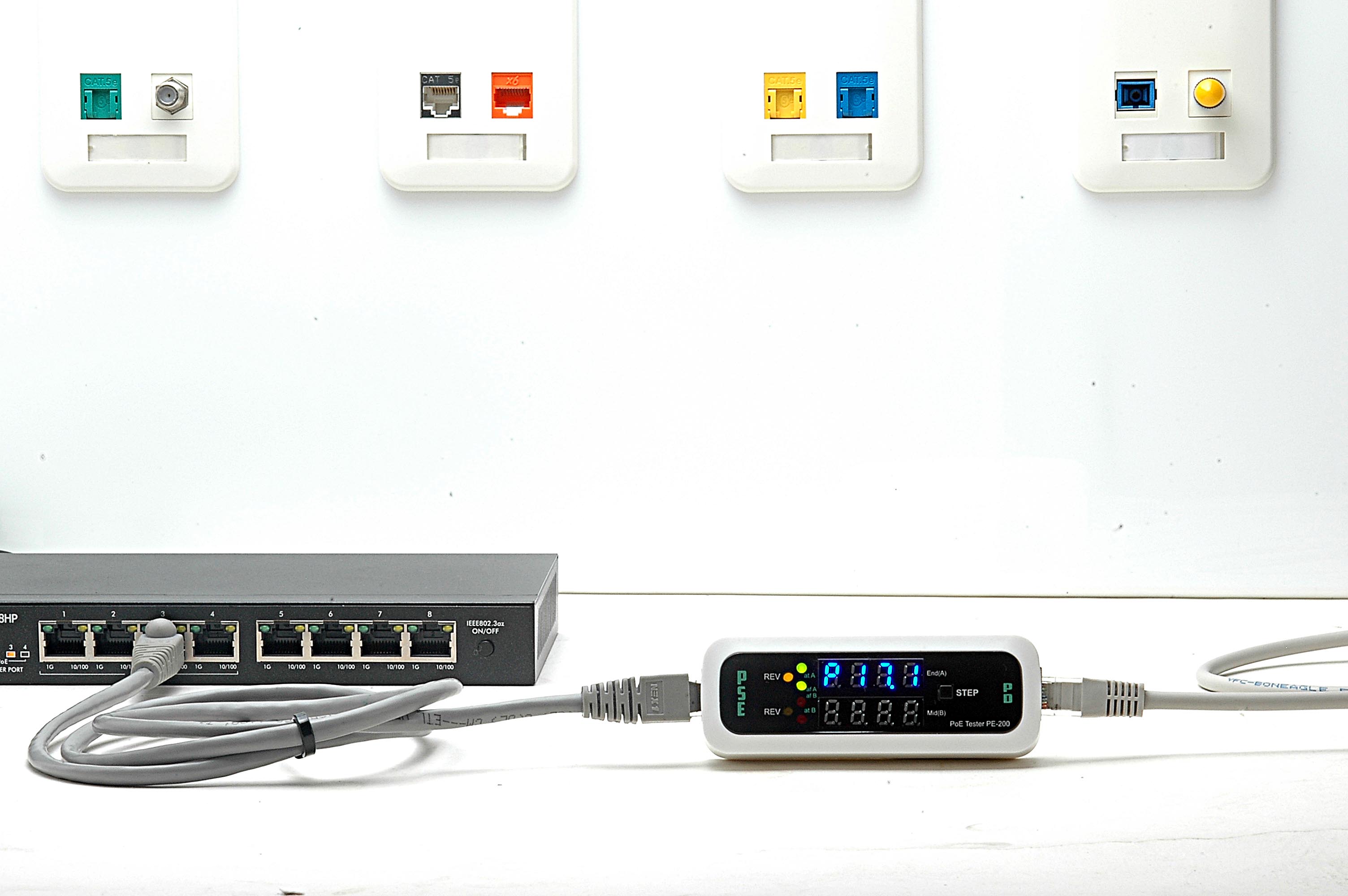

● Inline testing – Measures and displays in rotation between voltage (Volts), current (mAs) and power (Watts) via 4 digit 7 segment LEDs, which provides Voltage available, current flowing and how much power an PD actually need ensure a sufficient power for PD.



The tester built-in a Gigabit Ethernet transformer for PoE+ Application with up 1.1 Amps tolerance continuous for each pair total 2.2 Amps to isolate data passes and measure power without interruption of data.  It can accurately and continuously measure and display the power level of PoE at In-line testing.  They also equipped with a step button for selecting specific test data for easier reading.



The PoE tester pro is a handy professional diagnostic tool for speed up installing and troubleshooting PoE enabled device, and validating actual power let cable installers to save time surety that PD receives appropriate power.



PE-200 standard PoE tester combines with PE-300 NON-standard PoE tester are the must have tool for PoE, IT, CCTV and ISP installers and technicians to test, verify and complete PoE system solutions.  To ensure that their PoE distribute for a sufficient PoE power budget to support to the due amount of PDs, and avoid damage to the Non-PoE devices.



The tester is battery free and simple plug and play operation major time saver.



  1. Provides a simple way to test and set up PoE system and troubleshoot connection issues.
  2. Detects and displays standard active and passive PoE includes type, sources, polarity and power.
  3. Performs both one-site PSE testing for voltage and In-line PSE/PD testing for power.
  4. Determines if switch or outlet has PoE capability and display power at PD connected.
  5. PSE testing displays PoE type (af/at), power source (End/Mid), polarity and voltage, without need a load.
  6. In-line testing measures and displays in rotation between voltage (Volts) current (mAs) and power (Watts).
  7. Determines the value of power to ensure that a powered device actually need.
  8. Confirms your PoE network system for just all the power you do need.
  9. Built-in Gigabit/PoE+ transformer to isolate data passes without interruption of data.
  10. Equipped with a step button for selecting specific test data for easier reading.
  11. Compliant with IEEE 802.3 af, at and bt (type3) standard PoE.
  12. Plug and play for ease of use with battery–free operation.





Connector Interface

2X RJ45 jack (PSE test jack, PD test jack)

Step Button

For selecting specific data to display.

Default display for voltage value.

Display

* 4 LEDs indicate IEEE 802.3 af or 802.3 at standard.

* Dual 7-digit LEDs indicate power source either End (A)

  Span (1/2,3/6) or Mid (B) span (4/5,7/8) or both.

* 2 Yellow LEDs indicate reversed polarity for power type.

* Display in rotation between voltage (U) (Vots), current (A)

(mA or Amp) and power (P) (Watts).

Voltage Range

Max 30V to 60V for mode A and Mode B. (1% accuracy)

Max Current

750mA for Mode A and Mode B, total 1.5 Amps.

Gigabit(PoE+)Ethernet Transformer

Support 10/100 and Gigabit data rates, isolated data passes

Through for all 4 pairs.

With 1.1 Amp tolerance continuous for each pair.

Standard compliant

IEEE 802.3 af (PoE), 802.3 at (PoE+), and 802.3bt (PoE++)  type3.

Testing

One–ended testing–PSE.

In-line testing – between PSE and PD.

Tester load loss

0.75W

Operating Temp.

Storage Temp.

32°F to 122°F (0°C to 50°C).

-40°F to 131°F (-20°C to 55°C).

Operating Humidity

MAX 90% non – condensing.

Size

99 X 36 X 26mm / 3.9 X 1.4 X 1 inch.  0.1lb / 1.6oz.

Certification and compliance

CE, FCC, RoHS.

NOTE: Cable dissipation (Voltage drop), over a 100m (328ft) length, Cat 5 or higher

(12.5Ω) resistance.

Would be 4.12VDC in an 802.3 af type 1 installation.

Would be 7VDC in an 802.3 at type 2 installation.



Packaging includes:

1 PE-200 Tester.

2 White or color box.

3 User Manual.

4 Pouch (optional).
