  • Model #:PA-01D
  • Name:LAN Cable Tester
more big imgs
  • https://pansco.com/cache/20111201183212_cut.252.206.jpg

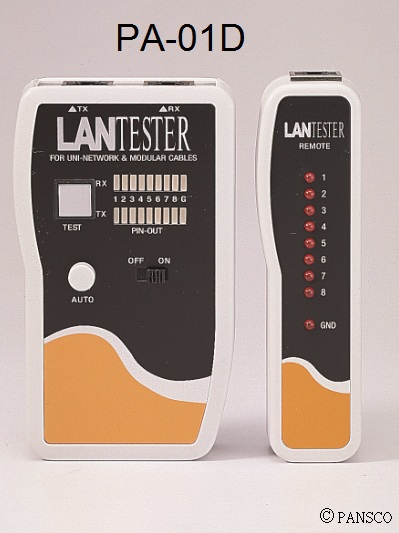

LAN Cable Tester



The LAN cable tester is a versatile, full-featured tool for testing many kinds of network cable. Loopback and remote tests may be performed automatically or manually, and will test cable continuity as well as identifying opens, shorts, reversed wiring, and miswiring in cables up to 2,000 ft. long. Shielded connectors allow the tester to test shielded twisted pair (STP) cables. The built-in tone generator generates a low emission frequency tone which can be detected by any market tone probe, making it easier to trace and locate cables. Uses 1 9V alkaline battery. CE Approved.



  •  Includes remote terminator for testing already-installed cable.
  •  Identifies opens, shorts, reversed wiring, and miswiring in shielded or unshielded cables.
  •  Tests cables up to 2,000 feet long.
  •  Automatic and manual cable testing.
  •  Built-in tone generator transmits a tone on any pin or all pins.
  •  Comes with RJ45 to RJ45 patch cord and adaptors for testing 10 BASE-T, EIA/TIA 568 A/B, AT&T 258A, 100 BASE-TX, TOKEN-RING, TP-PMD, ISDN, USOC and BNC networks.

Power

Main unit – 9V Alkaline battery

Remote unit – None required

Battery life – 60 hours

Size

Main unit – 4.57” x 2.67” x 1.13” / 116mm x 68mm x 28mm

Remote unit – 4.65” x 1.28” x 1.11” / 118mm x 32.5mm x 28mm

Weight

200g /0.44lb with battery

shipping weight – 290g / 0.64lb without battery

Material

ABS

Built-in interface

RJ45 jack – accepts both RJ45 & RJ11 plugs

Display

3 Ø LED and 10 segments Bar-Graph

Tone Freq.

800 HZ

Test

For continuity, detects, opens, shorts, reversals, crossed and misswires.

Cable types supported

UTP, STP 10 Base-T, 100 Base-TX, Token Ring (RJ45)

TP-PMD, T568 A/B, 10 Base-2, BNC/COAX and USOC

8,6,4,2 cables.

Distance

maximum length

2,000ft / 610m

Safety approve

CE
