  • Model #:PR-66
  • Name:Net Echo Toner and Probe Kit
more big imgs
  • http://pansco.com/cache/20111014182703_cut.252.206.jpg

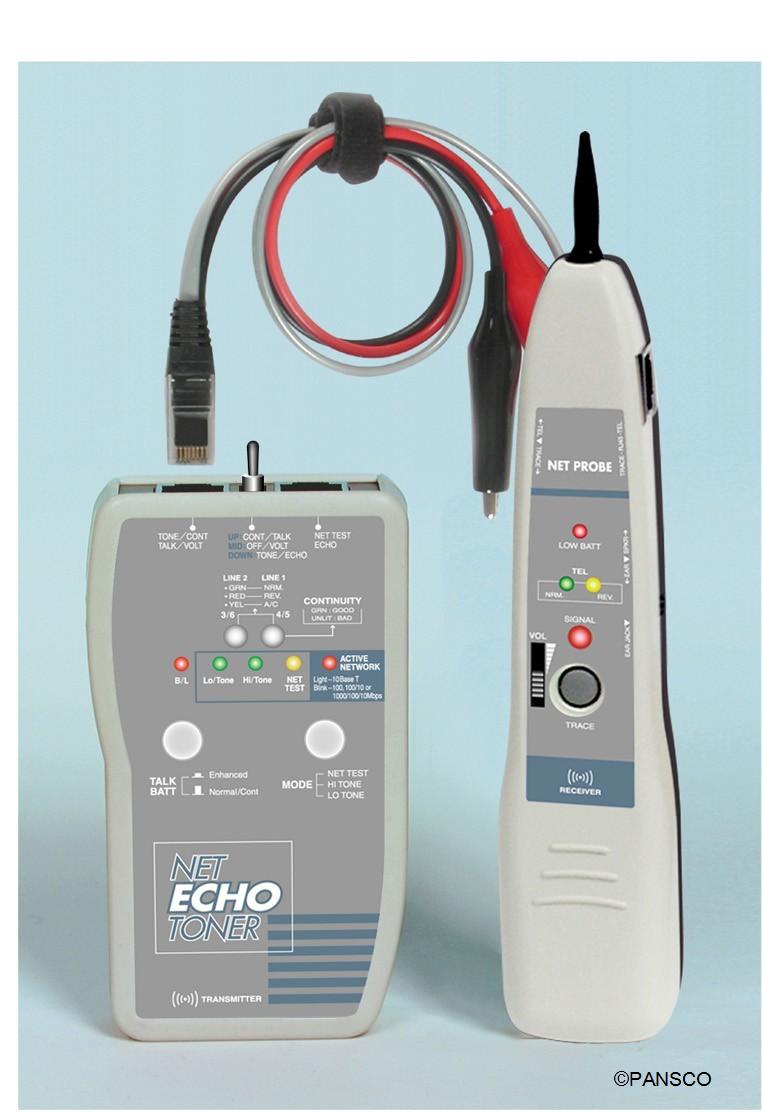

Net Echo Toner and Probe Kit



The NetEcho Toner & Probe Kit is a combination network tester and tone generator that speeds and simplifies telecom and network installation and troubleshooting. Its network tester detects network activity and indicates speed (10 Mbps, 10/100 Mbps, or 10/100/1000 Mbps), and its tone generator sends 2 able tones that the included Net Probe can trace to the far end of an installed cable. Its network tester has the added feature of flashing the network hub or NIC port light which corresponds to the test cable, so you can identify the cable’s port number. And an enhanced talk battery feature lets you draw enough battery power to communicate by voice even over inactive pairs, using telephone test sets (not included). The NetEcho Toner also tests cable continuity, line 1, line 2 polarity, and voltage in data and voice lines. It comes with two alligator clips, a 4-conductor (RJ-12) modular cable, and an RJ-45 jack, letting it test bare wires, telephone cord, network cable, and coaxial cable. An F- female coaxial connector is optional. for multiple connection options, which enable it to test telecom, network cable, coaxial cable, and bare wires.



The Net Probe comes with adjustable volume control and signal LED for enhanced accuracy.  It also includes ring / tip polarity test indicators, an earphone jack for noisy environments, modular jack and test pins for multiple connector options, low battery indicator, easy tip replacement, and lanyard attachment point for hands-free operation.  When used in conjunction with the toner, the Net Probe allows you to trace and troubleshoot Telecom/Datacom, security/alarm, CATV and audio cable systems. CE Approved.



  • A combination network tester and tone generator.
  • Tests voice and data cables for continuity, line 1-line 2 polarity, and voltage.
  • Flashes the network hub/NIC port light for the cable being tested.
  • Displays network activity and speed (10 Mbps, 10/100 Mbps, 10/100/1000 Mbps).
  • “Enhanced talk battery” uses battery power for voice communication, even on inactive pairs (telephone test sets not included).
  • Tone generator sends two able tones detectable by the included Net Probe.
  • Includes alligator clips, RJ12 cable, RJ45 jack, and optional coaxial F-female connector for multiple connection options.
  • Output Tone: HI alternating 500 - 781 HZ

                      LO alternating 446 - 657 HZ



  • Talk Battery: 9V into a 600 ohms circuit



  • Voltage Protection: 50 VDC or 24 VAC



  • Traffic Test: 10 Base T, and 100/10 Mbps, / 1000/100/10 Mbps, Hub/NIC detection

                             active network detection



  • Tip Resistance: 300 ohms (plastic Tip)



  • Gain : 30 dB



  • Battery : 9V DC.  Standard or Alkaline



  • Size : Toner : 4.9” x 2.7” x 1.2” (125 x 68 x 26 mm)

           Probe : 8.1” x 1.6” x 1”  (210 x 40 x 28 mm)



  • Weight: Toner : 150g / 5.29oz / 0.33lb with battery

            Probe : 145g / 5.11oz / 0.32lb with battery



  • Operating conditions: 0℃ to 50℃ / 32℉ to 122℉
