  • Model #:PR-09SCSIV
  • Name:SCSI V Cable Tester
more big imgs
  • https://pansco.com/cache/20111014171743_cut.252.206.jpg
  • https://pansco.com/cache/201110141717430_cut.252.206.jpg

SCSI V Cable Tester



The Universal Cable Tester is a compact, stand-alone unit which gives technicians an affordable way to test PC, serial ATA, network, telecom, coaxial, USB A/B, mini USB A/B/AB, 1394 Firewire 4/6, and SCSI I, II, III, and V cables for continuity, wiring configuration, opens, shorts, miswiring, and cross-connected wires.

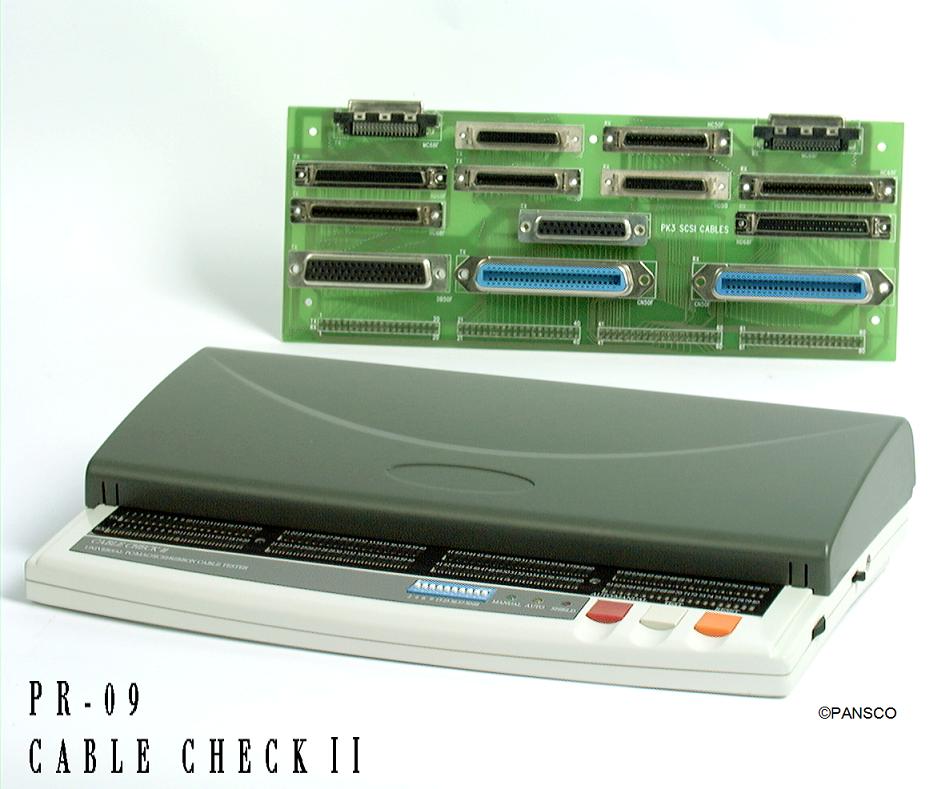

The Universal Cable Tester’s interchangeable socket boards let you test almost every type of cable simply by purchasing a new socket board, not a whole new tester. An easy-to read LED instantly shows whether connections are good or faulty. Ideal for computer technicians and hardware outlets. Powered by DC adaptor or 9V battery.



Note: If you purchase the SCSI tester, the base unit can test up to 80 pins, and you may change the socket board if you wish. However, the PC-Net cable tester’s base unit can only test 36 pins, and is not compatible with other test boards. CE approved.



          PR-09SCSI                                           PR-09SCSI II                                     PR-09 SCSI V



TX

RX



TX

RX



TX

RX

CN50F

CN50F



CN50F

CN50F



CN50F

CN50F

HD50F

HD50F



HD50F

HD50F



HD50F

HD50F

HD68F

HD68F



HD68F

HD68F



HD68F

HD68F

DB50F





HC50F

HC50F



HC50F

HC50F

DB25F





HC68F

HC68F



HC68F

HC68F







DB50F





VHDC1 68F

0.8mm

VHDC1 68F

0.8mm







DB25F





DB50F















DB25F







  1. Testers share a common base unit, each topped with a different socket board.
  2. Tests any cable plugged to the socket board pin-by-pin, allowing user to detect wiring configuration, continuity, opens, shorts, miswiring and cross-connected wires.
  3.  Easy-to-read LED immediately shows whether connections are good or faulty.
  4.  Suitable for computer dealers and hardware outlets.
  5.  Automatic and manual test modes, adjustable test speeds, and reset switch.
  6.  Maps pins at both ends of the cable and tests shielding.
  7.  10-pin dip switch adjusts number of pins being tested.

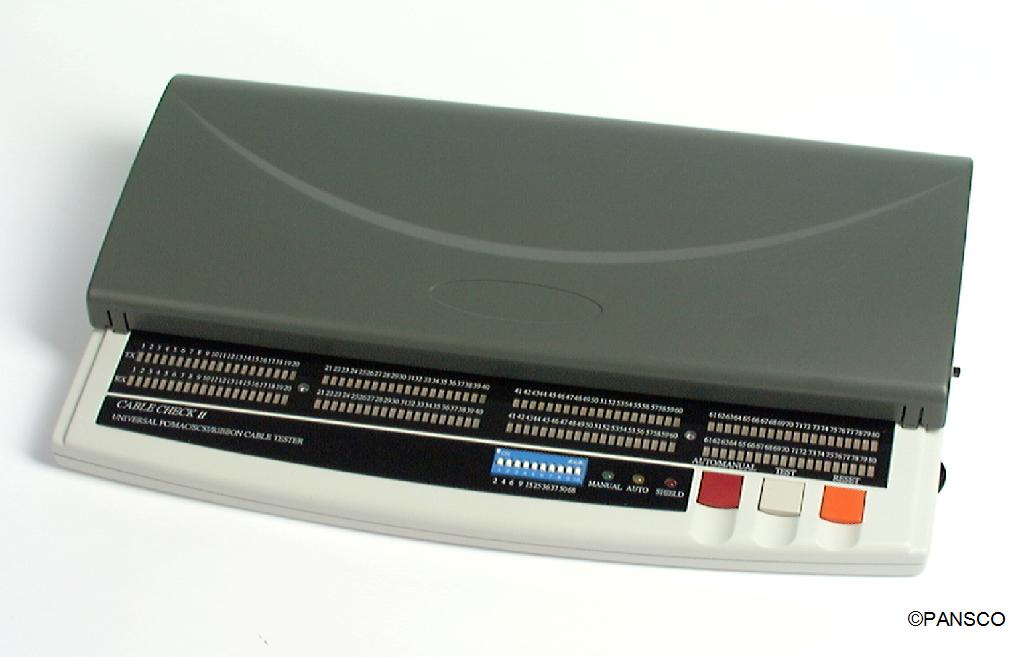

  8.  Dust cover protects sockets from dust and damage.
  9.  Tests SCSI type I, II, III, and V; tests 68-pin Micro Centronix VHDCI 0.8mm cable.
  10.  Test base unit tests up to 80 pins.

SPECIFICATIONS:

Physical Dimensions

Size: 265 x 164 x 60 mm  (10.3 x 6.4 x 2.3 inches).

Weight: 870 grams / 915 grams with battery / 1,000 gram with package.



Environmental

Operating temperature: 0℃ to 50℃ (32° to 122℉).

Storage temperature: -30℃ to 80℃ (-20° to 176℉).

Battery life – 9V Alkaline battery, typical, 30 hours.

Cable types: Shielded or unshielded.

CE APPROVAL
