  • Model #:PA-01T
  • Name:LAN CABLE TESTER w/ Tone Generator
more big imgs
  • https://pansco.com/cache/20130117120242_cut.252.206.jpg

The LAN Cable Tester with Tone Generator is a perfect companion for any network professional.  The tester can enhance one’s ability to quickly locate and verify the status of commonly used voice and data cables.



It can perform loop-back or remote tests of network cables, displaying the results on an LED display, which moves from pin to pin automatically or manually. Its applications include testing cable and shield integrity and tracing cable.



The tester comes complete with adapters for testing 10 Base T, E1A/T1A 568A/B, AT & T 258A, 100 Base-TX, Token-Ring, ISDN, USOC, and coaxial networks. Other optional adapters such as RT45-USB, RJ45-IEEE1394 and F-BNC can also be added to expand the LAN Cable Tester’s functionality.

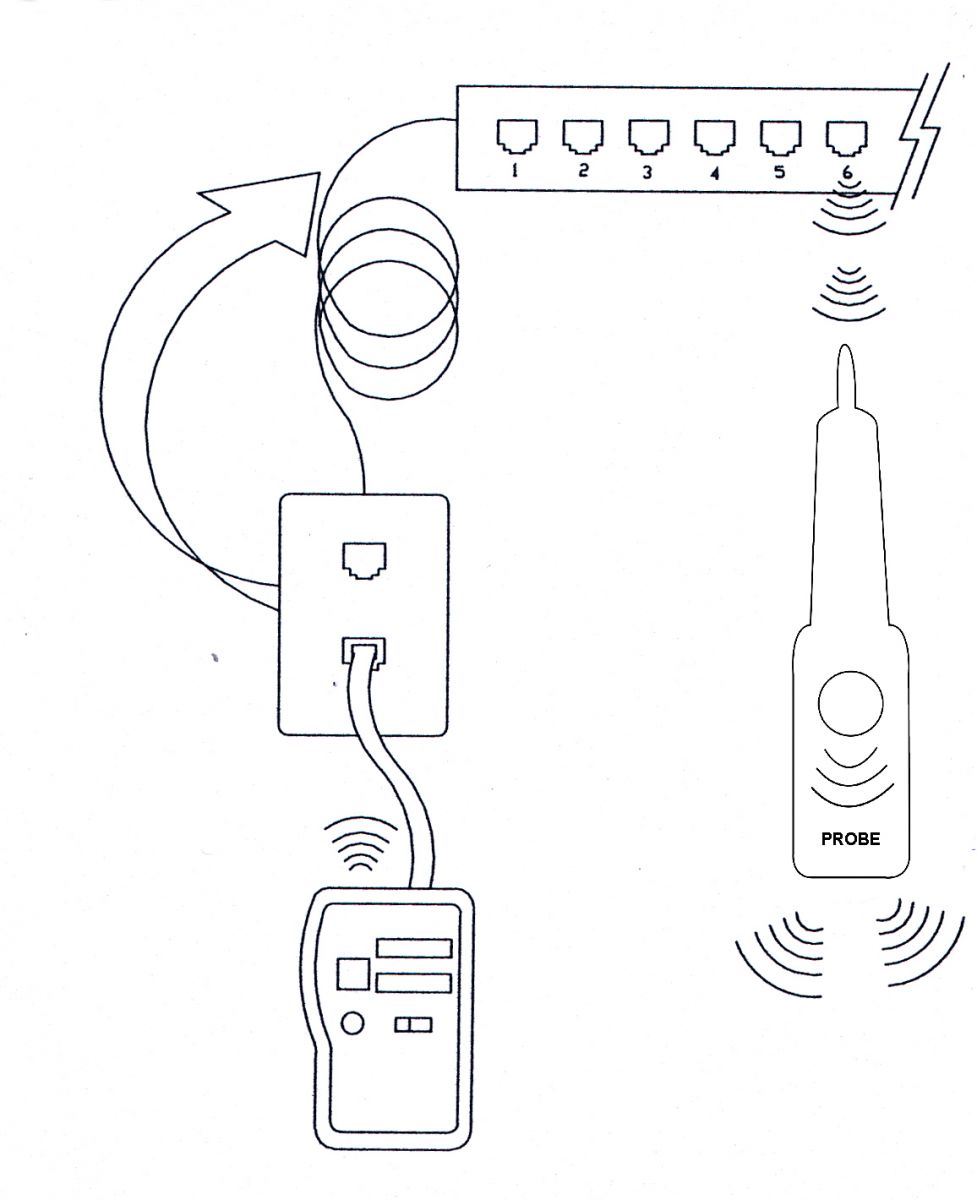

Tracing cable with Probe (PR-06P)

  • It scans for continuity, opens, and shorts as well as reversals and crossed wiring.
  • It features Auto or Manual scans for displaying pin configuration.
  • Built-in tone generator for cable tracing & identification.
  • The remote terminator can be used to test existing cable installations.
  • Patch panel and wall plates can be easily tested with the included RJ45 adapterpatch cable.
  • RJ45 to BNC adapters allow for testing & tracing of BNC cables.
  • Battery low indicator prevents misreading results.



SPECIFICATIONS

1. Power

Main unit – 9V Alkaline battery

Remote unit – None required

Battery life – 60 hours

2. Size

Main unit – 4.57” x 2.67” x 1.13” / 116mm x 68mm x 28mm

Remote unit – 4.65” x 1.28” x 1.11” / 118mm x 32.5mm x 28mm

3. Weight

200g /0.44lb with battery

shipping weight – 290g / 0.64lb without battery

4. Material

ABS

5. Built-in interface

RJ45 jack – accepts both RJ45 & RJ11 plugs

6. Display

3 Ø LED and 10 segments Bar-Graph

7. Tone Freq.

800 HZ

8. Test

For continuity, detects, opens, shorts, reversals, crossed and

misswires.

9. Cable types supported

UTP, STP 10 Base-T, 100 Base-TX, Token Ring (RJ45)

TP-PMD, T568 A/B, 10 Base-2, BNC/COAX and USOC

8,6,4,2 cables.

10. Distance

   maximum length

2,000ft / 610m

11. Safety approve

CE
