  • Model #:PR-608/
  • Name:Net Toner & Probe Kit
more big imgs
  • https://pansco.com/cache/20111123104542_cut.252.206.jpg

Net Toner & Probe Kit



  • PR-608         Includes PR-06TE Net Toner + PR-06PE Net Probe-0.






The Net Toner & Probe Kit is a practical telecom and network installation, maintenance and troubleshooting tool.  The kit helps you locate and identify wires, pairs and cables.



The Net Toner has the unique features of enhancing talk battery power supply to allow communication over inactive pairs, using telephone test sets.  It provides two able tones which allow you to trace cable and locate faults for troubleshooting both voice and data circuits.  It also tests cable continuity and can determine line 1 and line 2 polarity and voltage in data and voice lines.  It features a tone signal, two alligator clips, & 4-conductor (RJ12) modular cable to test telecom, cats cabling, coax cable and bare wires. The tone generated by the Net Toner can be easily traced by the Net Probe or any other commercial probe.



The Net Probe comes with adjustable volume control and Ring/Tip polarity test indicators, an earphone jack for noisy environments, low battery indicator, easy tip replacement, and lanyards attachment point for hand-free operation.  The Net Probe is also equipped with a visual signal indicator and a flashlight help to find the target in dark field (PR-06PL only).  When used in conjunction with the toner, the Net Probe allows you to trace and troubleshoot Telecom/Datacom, Security/Alarm, CATV and Audio cable systems.  This Kit is a must-have tool for installation, service and repair.

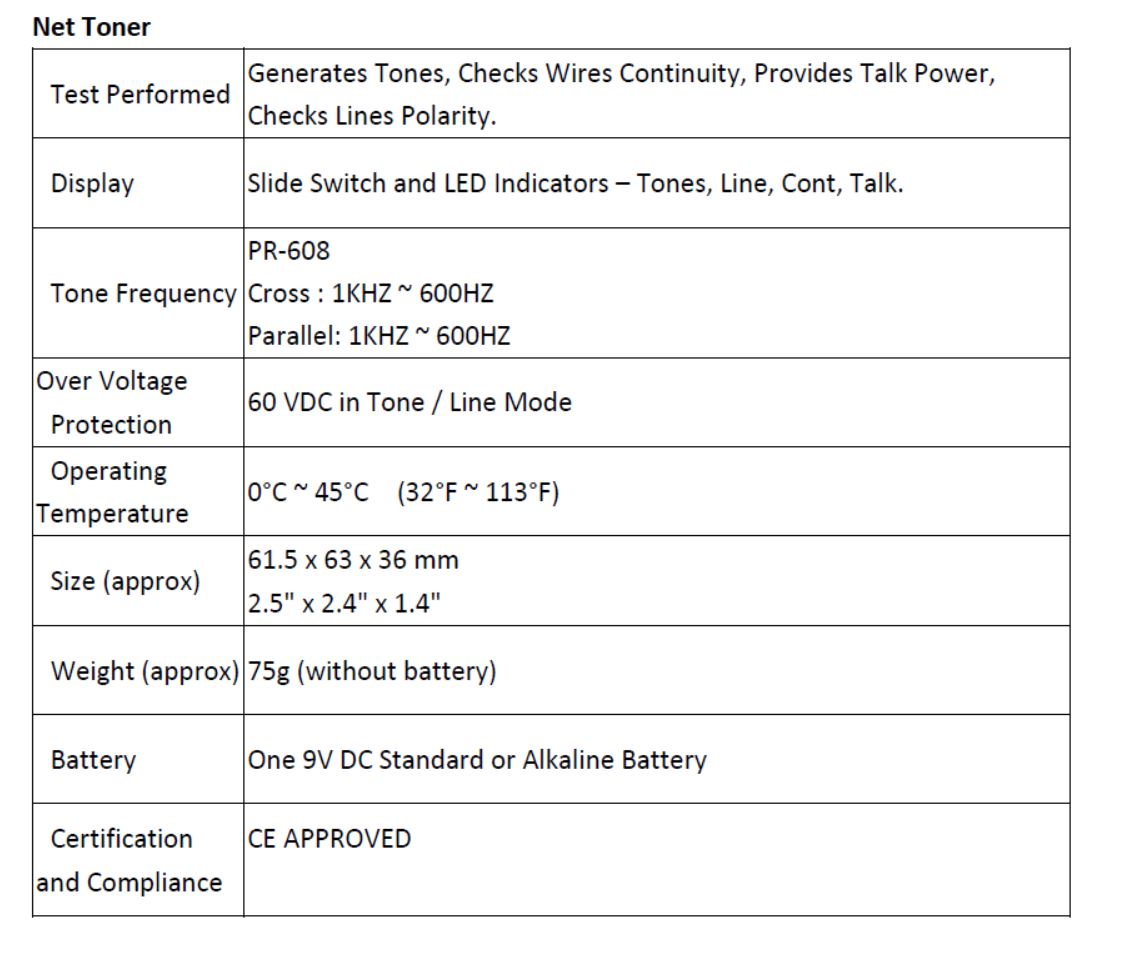

Net Toner

  1. Provides 2 selectable tones for tracing wires and cables.

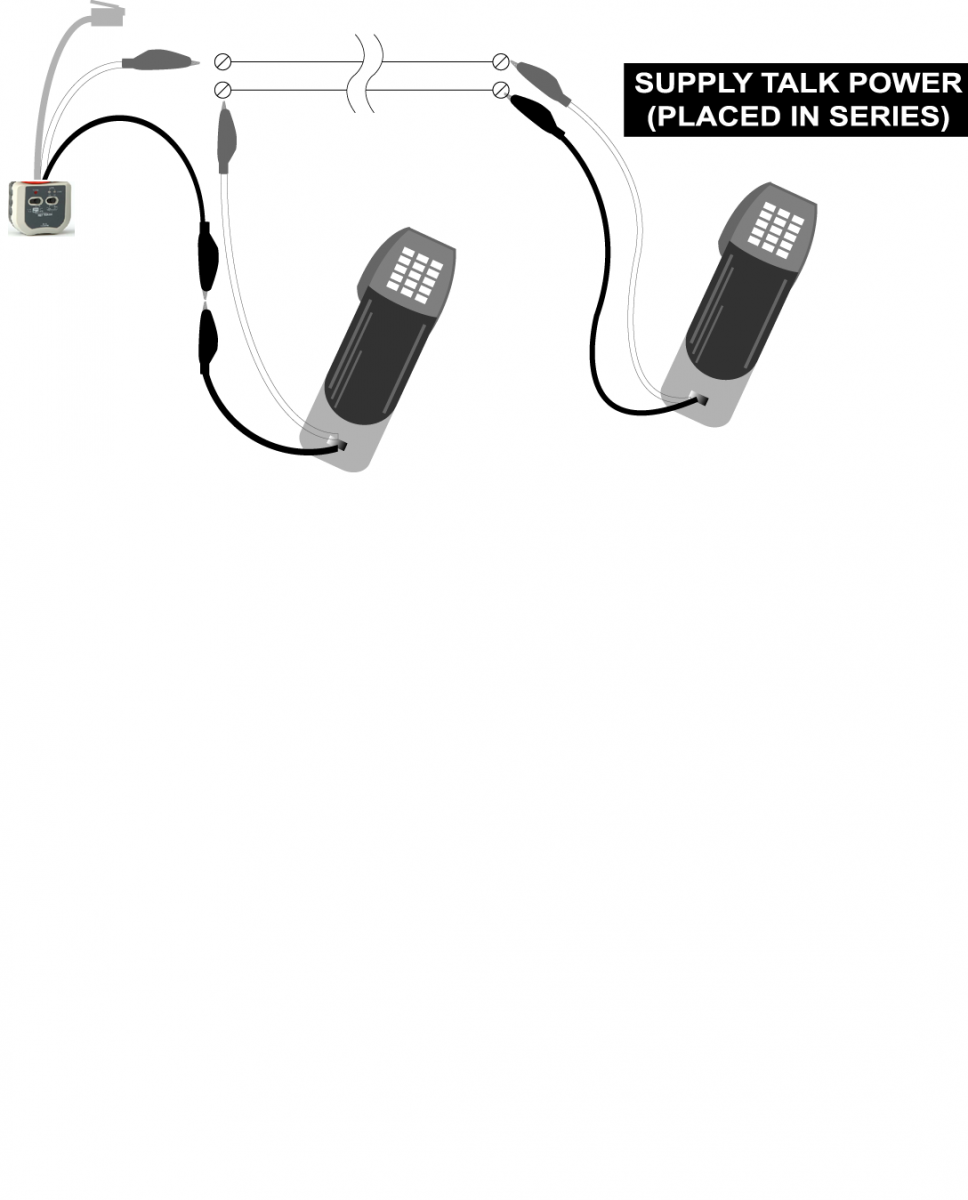

  2. Enhances talk battery power supply to allow communication over inactive pairs.
  3. Test cable/wire continuity, and determine line 1 and line 2 polarity.
  4. Built-in alligator clips and 4-conductor RJ12 cable for multiple connection options.
  5. Durable nylon carrying case with belt loop includes.

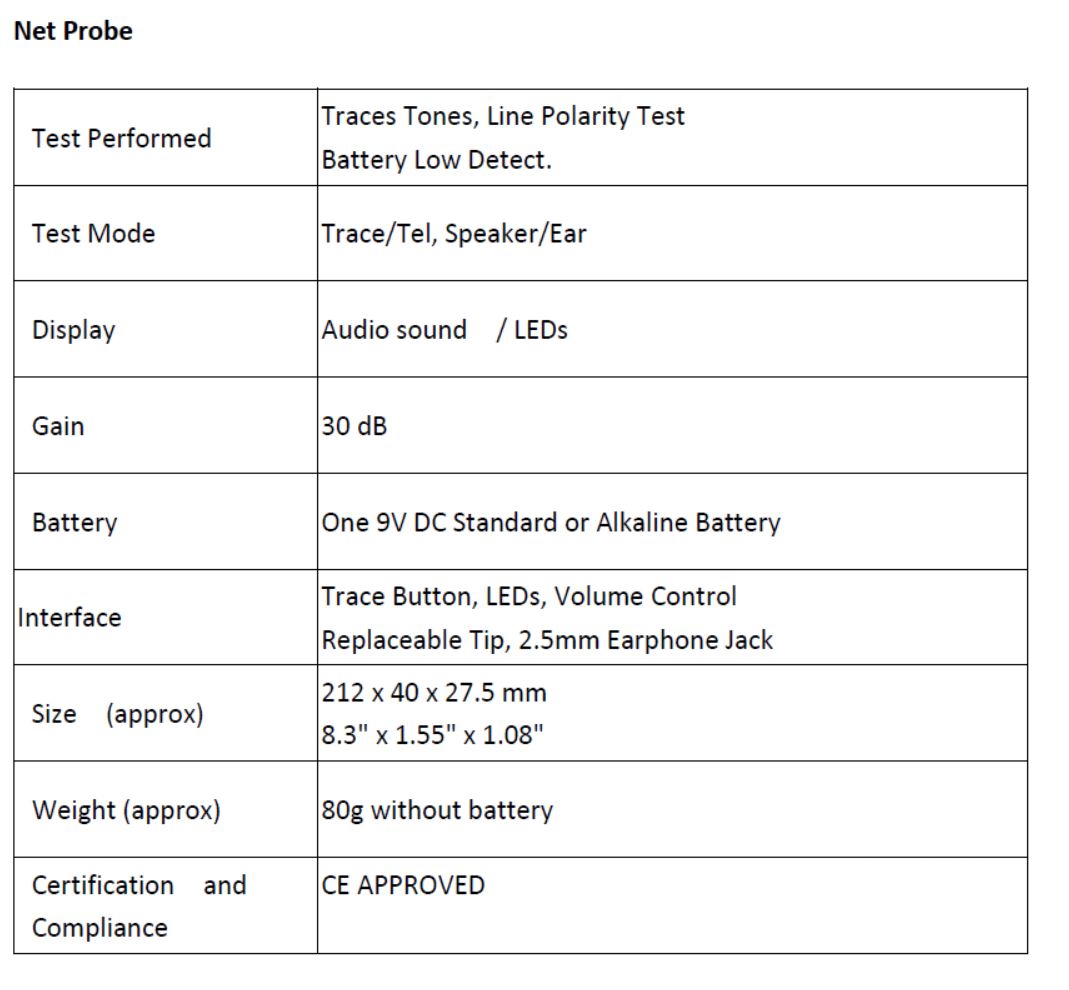

Net Probe

  1. Comes with adjustable table volume control.
  2. Includes Ring/Tip polarity indicators and RJ45 jack.
  3. An earphone jack for noisy environments.
  4. With low-battery indicator and easy tip replacement.
  5. Lanyards attachment point for hand-free operation.
  6. Includes visual signal indicator and flashlight (PR-06PL only).
